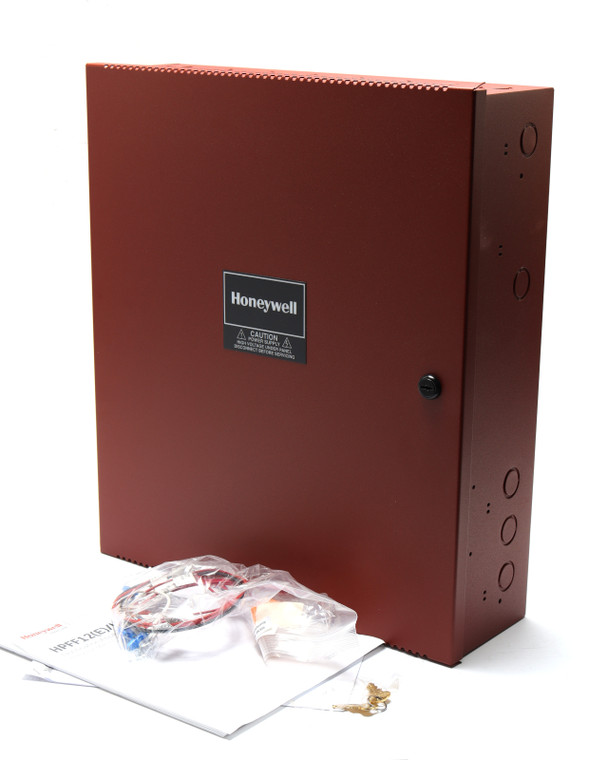

Honeywell HPFF12 Notification Appliance Circuit Expander Power Supply

Honeywell HPFF12, Notification Appliance Circuit Expander Power Supply

Condition:
* New Surplus Stock, In OEM Packaging. As Pictured.

Additional Notes:
* Primary Input Power: 120 Volt AC, 60 Hz, 5.4 Amp
* Secondary Power: 24 Volt Operation; Two 7-24 AH Batteries
* Battery Charging Capacity: up to 26 AH Batteries
* HPFF12 Cabinet: Holds up to two 18 AH Batteries
* Total Output Current: 12.0 Amp Max.
* Standby Current: 0.075 Amp
* Auxiliary Power Output: 2.0 Amp under all conditions
* NAC Output Ratings: 24 Volt DC fully regulated 3.0 Amp Max per circuit (12.0 Amp Total)
* End-of-Line Resistor Range: 1.9K to 25k Ohm, ½ Watt. Product ships with 4 separate programming resistors. They are 3.9K (5 each - only need one for programming), 2.2K (1 each), 4.7K (1 each) and 10K (1 each).
* Common Trouble: 2.0 Amp at 30 Volt DC
* Relay Fail Relay: 2.0 Amp at 30 Volt DC
* Input Control Circuits: Compatible with 12 and 24 Volt DC control panel NACs.
* Input Control Current (Alarm): 5.68 mA @ 12 Volt DC, 12.28 mA @ 24 Volt DC
* Temperature Rating: 32°F To 120°F (0°C To 49°C)
* Relative Humidity: 10% To 93% Non-Condensing
* Cabinet Dimensions: 16.65" (W) x 19.0" (H) x 5.2" (D) (42.29 (W) x 48.26 (H) x 13.23 (D) cm)
* Trouble indication for supervision of the following:- NAC circuits- Battery charger voltage- Auxiliary output- AC input- Earth ground faults
* Optional two-hour delay for AC loss.
* Separate Trouble and AC Fail Form-C relay contacts.
* The Trouble Form-C relay contacts selectable for an immediate or a two hour delay with AC failure.
* 26 AH Battery Charger Capability The wall cabinet supports Two 12 Volt 18 AH Batteries, while the multi-pack equipment cabinets support two 12 Volt, 12 AH Batteries.
* NAC Overload Protection And Indication.
* Provision for mounting a single (AOM-2SF) or six circuit addressable control modules (MMO-6SF) or relay modules (AOM-2RF) inside the enclosure. (Use the Mounting Kit P/N:90474).
