Hirschmann CA 3 LS 4-pin Straight Cable Plug

Hirschmann CA 3 LS 4-pin Straight Cable Plug

Hirschmann
SKU:
020268
|
UPC:
4002044181314
$9.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Hirschmann CA 3 LS, 4-Pin Straight Male Cable Plug

Condition:

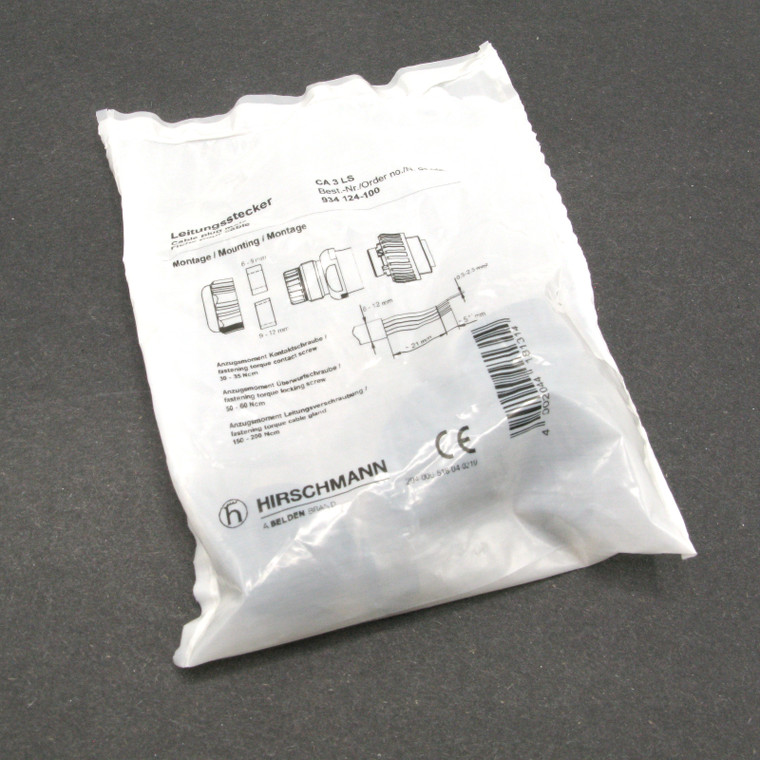

* New, Surplus Stock. In OEM Packaging. As Pictured.

Additional Notes:
* Housing Color: Black
* Number of Contacts: 3 + Ground
* Type of Contact/Gender: Plug/Male
* Overall Dimensions: 30 mm Diameter x 61 mm Length (1.18" x 2.4")
* Cable Gland: M22 x 2
* Cable Diameter: 6 mm To 12 mm (0.24" To 0.47")
* Conductor Size: 0.5 mm² To 2.5 mm²
* Rated Voltage: AC 400 Volt/ DC 250 Volt (Operating Voltage 230 Volt DC / 400 Volt AC)
* Rated Current: DC 10 Amps / AC 16 Amps
* Contact Resistance: <= 10 mΩ
* Protection Class: IP 66/67 (When Attached)
* Contact Base Material: Copper Zinc
* Contact Plating: Copper/Silver
* Contact Bearer Material: Glass Fiber Reinforced Polyamide 66
* O-Ring: NBR Rubber
* Temperature Range: -40°C To + 90°C (-40°F To 194°F)
* Flammability, UL Standard: 94 V-0
* Type of Termination: Screw

Hirschmann
934124-100
