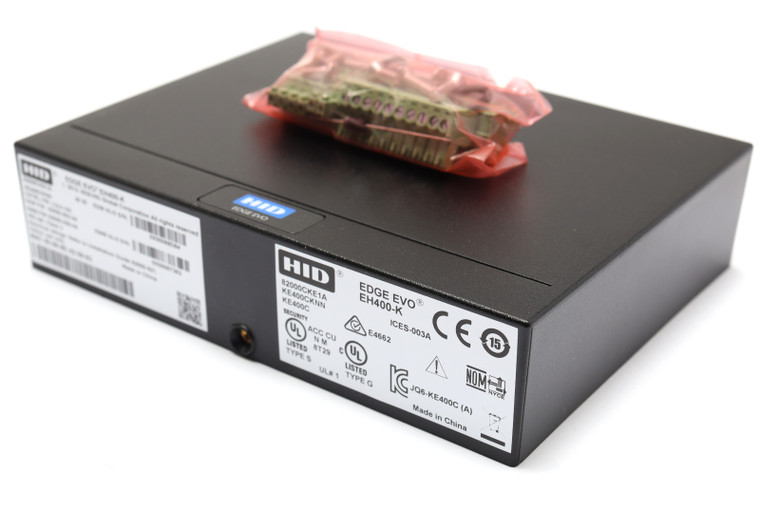

HID Edge Evo EH400-K Networked Controller

HID Edge Evo EH400-K, Networked Controller

Condition:
* New Surplus Stock, In OEM Packaging. Open Box. As Pictured.

Additional Notes:
* Model (And Part #): EH400-K (82000CKE1A)
* Mounting Holes: US Double-gang, US Single-gang and EU / APAC 60mm
* Dimensions: 6.1" W x 4.8" H x 1.5" D (154.9 mm x 122.5 mm x 37.1 mm)
* Operating Temperature: 32°F To 122°F (0°C To 50°C)
* Operating Humidity: 5% To 95% Relative, Non-Condensing
* Communication Ports: Ethernet (10/100), Hi-O CANbus, Wiegand or Clock-and-Data
* DC Input (MAX) @ PoE: 14.4 Watt (300mA @ 48 Volt DC)
* DC Input (MAX) @ AUX +12 Volt DC: 18 Watt (1500mA @ 12 Volt DC)
* DC Input (MAX) @ AUX +24 Volt DC: 36 Watt (1500mA @ 24 Volt DC)
* Supervised Inputs Power (MAX): 0.025 Watt (5mA Sink, 5 Volt Nominal) 0 To +5VCD Ref
* DC Input @ PoE: 9.6 Watt
* DC Input @ AUX +12 Volt DC: 14.4 Watt
* DC Input @ AUX +24 Volt DC: 28.8 Watt
* Hi-O CANbus Output Voltage, DC Input = PoE: 24 Volt DC
* Hi-O CANbus Output Voltage, DC Input = AUX: AUX +VDC
