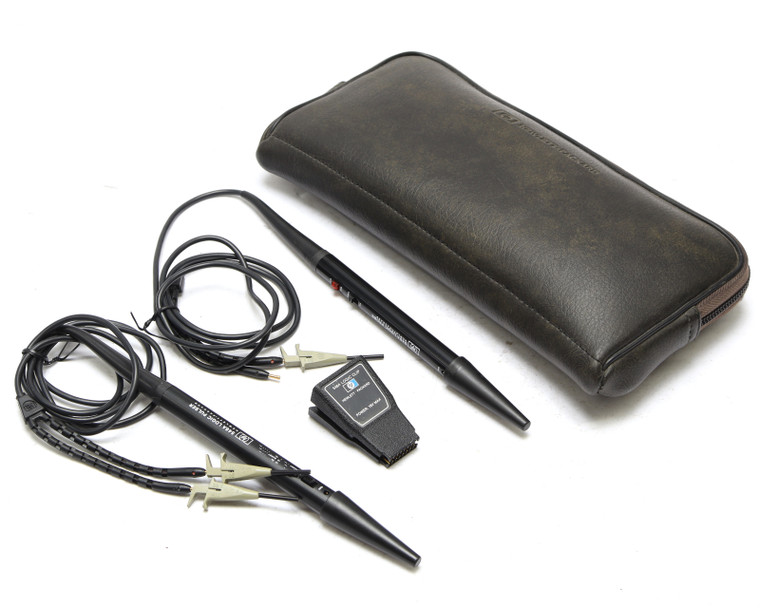

Hewlett Packard Logic Probe Kit, 3 Piece Set

Hewlett Packard Logic Probe Kit, 3 Piece Set

Condition:
* Used, unable to test. Sold as-is.
* As pictured.

Additional Notes:
HP 545A Logic Probe
* Input Current: <15 uA (source or sink)
* Input Capacitance: < 15 pF
* Input min Pulse Width: 10 ns using ground lead
* Input max Pulse Repetition Frequency: TTl 80 MHz CMOS 40 MHz
* This unit also has Pulse Memory and Overload Protection.

HP 546A Logic Pulser Probe
* TTL/DTL:
       • Output Current: ≤650 mA
       • Pulse Width: ≥0.5 µS
       • Output Voltage (High): ≥3V dc
       • Output Voltage (Low): ≤0.8V dc
* CMOS:
       • Output Current: ≤100 mA
       • Pulse Width: ≥5.0 µS
       • Output Voltage (High): ≥(V supply - 1V dc)
       • Output Voltage (Low): ≤0.5V dc

HP 548A Logic Clip
* The HP 548A is a high-impedance logic clip for in-circuit testing of TTL and CMOS integrated circuits.
* It monitors up to 18 pins simultaneously, displaying logic states via LEDs while drawing power directly from the device under test.
