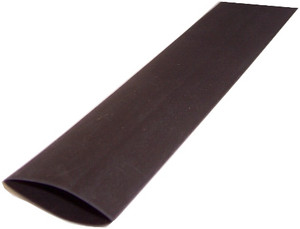

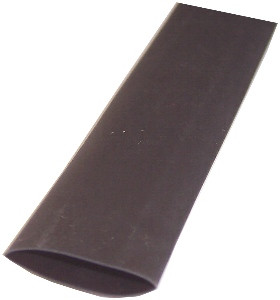

Heat Shrinkable Tubing 1/2" x 4' Black
ThermosleeveBelow are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 24 and get 10% off
- Buy 25 - 49 and get 12% off
- Buy 50 - 99 and get 15% off
- Buy 100 or above and get 20% off
Heat-Shrink Tubing, >2:1 Shrink Ratio, 1/2 Inch x 4 Foot Black
HST Series is halogen-free, flame-retardant, polyolefin heat shrinkable tubing.
Properties are good resistance to common fluids, solvents and high dielectric strength.
Applications include: electrical insulation, cable bonding, color coding, strain relief, etc.
Minimum order of 3 pieces.
Specifications:
Shrink Temperature: 90~120 Degree C
Operating Temperature Range: -55~125 Degree C
Radial Shrink Ratio (%): > 2:1
Longitudinal Change (%): < +/- 5
Tensile Strength (MPa): > 10.4
Ultimate Elongation Ratio (%): > 200
Aging in Circulation-Air Oven: 158.0 +/- 1.0 Degree C, 168 hours.
After Aging Tensile Strength (MPa): > 7.28
After Aging Ultimate Elongation Ratio (%): > 100
Dielectric Strength (kV/mm): > 15
Flammability: VW-1
Concentricity (%): > 65
Thermosleeve
HST12BK4
