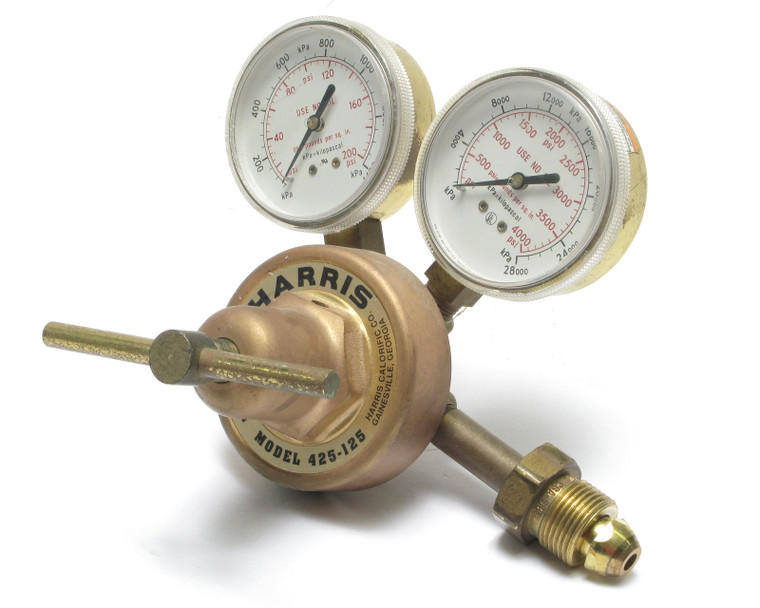

Harris Model 425-125-580 Single Stage Regulator

Harris Model 425-125-580 Single Stage Regulator

Harris
SKU:
017947
Availability:
$39.95
(No reviews yet)
Current Stock:

Out of stock

Out of Stock
Description

Harris Model 425-125-580, Single Stage Regulator

Condition:
* Used, Removed From Service In Working Condition.
* As Pictured.

Additional Notes:
* Single-stage industrial regulator with premium features
* Designed for rugged, long-lasting performance
* Easy-to-operate brass "T" screw
* Brass body and bonnet for longer service life
* Neoprene diaphragm for better pressure control
* 2.5" Brass dual scale easy-to-read gauges
* One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
* UL® Listed
* Equipped with a tamper-proof, self-reseating internal safety valve
* Delivery Pressure Gauge: 200 (PSIG)
* Delivery Pressure Range: 0 - 125 (PSIG)
* Gas / Gas Service: Argon (Ar), Helium (He), Nitrogen (N2)
* Inlet Connection: CGA 580
* Max. Inlet Pressure: 3000 (PSIG)
* Outlet Connection: 9/16"-18 RH
* Pressure Regulation (PSIG/100 PSIG): 0.20

Harris
425-125-580
