Harmonic Drive RSF-5B-100-US050-BC Supermini Servo Actuator w/ 100:1 Gearhead

Harmonic Drive RSF-5B-100-US050-BC Supermini Servo Actuator w/ 100:1 Gearhead

Harmonic Drive LLC
SKU:
023554
$684.95
(No reviews yet)
Current Stock:
3
Adding to cart… The item has been added
Description

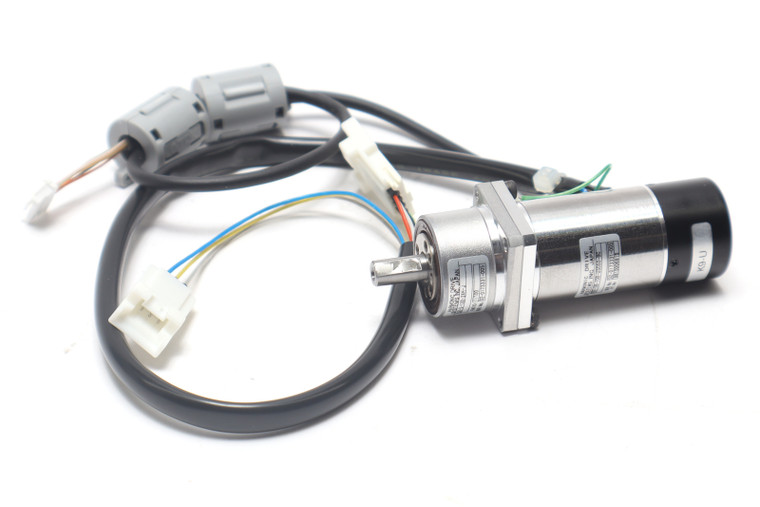

Harmonic Drive RSF-5B-100-US050-BC, Supermini Servo Actuator w/ 100:1 Gearhead

Condition:
* New Old Stock, In OEM Packaging. As Pictured.

Additional Notes:
RSF-5B-100-US050-BC
* Compact, lightweight
* High positional accuracy
* Size: 5B
* Gear Ratio: 100:1
* Encoder Type: Incremental encoder
* Encoder Resolution: 500 line
* Options: With Brake & Connectors
* Rated Torque: 0.29 Nm (2.6 lb-in)
* Rated Speed: 90 RPM
* Stall Torque: 0.44 Nm (3.9 lb-in)
* Maximum Torque: 0.9 Nm (8 lb-in)
* Encoder Resolution: 100,000 counts/rev
* One-way positioning accuracy: 180 arc/sec
* Number of Poles: 8
* Overall Length: 58.1mm

CSF-5-100-2XH-J
* Ratio: 100:1
* Square flange type, shaft output
* Average Torque Limite: 0.94 Nm
* Max. Input Speed: 10,000 RPM
* Limit for Avg. Input Speed: 6500 RPM
* Shaft Dimensions (DxL): 5mm x 9mm


Harmonic Drive
RSF-5B-100-US050-BC
