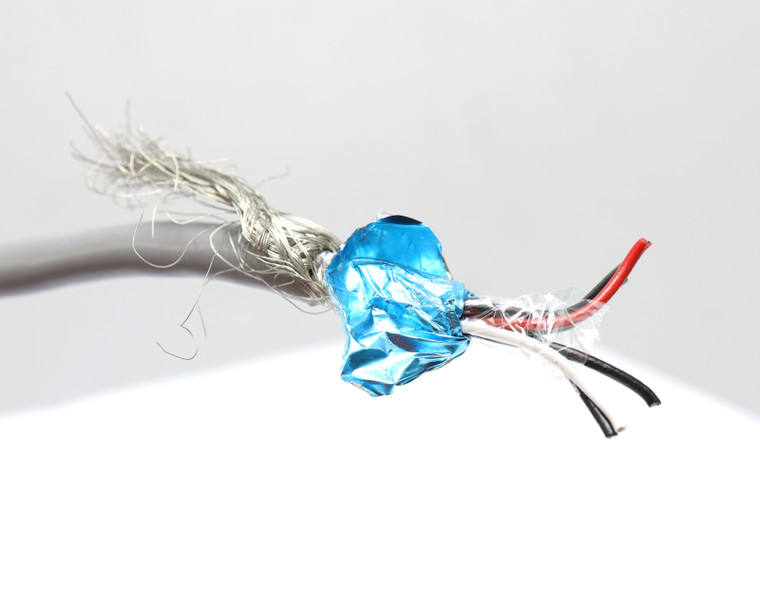

General Cable C0651A.41.10 22/3 Twisted-Pair PVC Jacketed Cable, 1000ft

General Cable C0651A.41.10 22/3 Twisted-Pair PVC Jacketed Cable, 1000ft

General Cable
SKU:
027551
$749.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

General Cable C0651A.41.10 22/3 Twisted-Pair PVC Jacketed Cable, 1000ft

Condition:
* New surplus stock, in sealed OEM packaging. As pictured.

Additional Notes:
* Equivalent to Belden 8303 Computer EIA RS-232 Cable
* Multipair Cable, Shielded, 3 Pair, 22 AWG
* Used for computers, industrial equipment, data transmission, control circuits and suitable for EIA RS232 applications
* Conductor Size: 22AWG
* No. of Conductors: 6 (3 pairs)
* Conductors Material: Tinned Copper
* Stranding: 7 x 30 Gauge
* Shield: 100% Flexfoil aluminum/polyester with 25% overlap, minimum, foil facing out, 65% tinned copper braid
* Jacketing: PVC jacket
* Nom. OD: 0.296" (7.52mm)
* Temperature Rating: -20°C to +80°C
* Compliances:
       • NEC Article 800 Type CMR (UL: 75˚C)
       • UL Style 2464 (UL: 80˚C, 300 V)
       • CSA CMG (CSA: 60˚C)
       • RoHS Compliant Directive 2011/65/EU
       • Designed to meet UL 70,000 BTU Vertical Tray Flame Test
       • Passes CSA CMG Flame Test
       • CE: Low Voltage Directive (LVD) 2006/95/EC
       • Assists system designers in meeting FCC Docket 20789 demands

General Cable
C0651A.41.10
