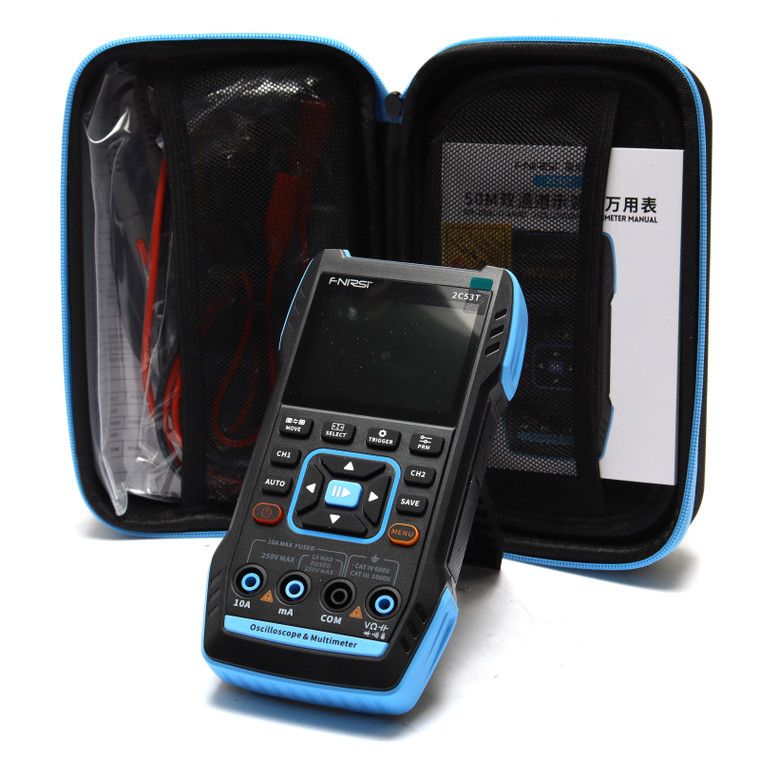

FNIRSI 2C53T 3-in-1 Oscilloscope Multimeter Signal Generator

FNIRSI 2C53T 3-in-1 Oscilloscope Multimeter Signal Generator

Condition:
* New surplus stock, in OEM packaging. As pictured.

Additional Notes:
* Brand: FNIRSI
* Model: 2C53T
* Display Screen: 2.8 inch HD color screen
* Resolution ratio: 320*240
* Charging Specifications: TYPE-C (5V/1A)
* Battery: 3000mAh lithium battery
* Support Functions: Oscilloscope, Signal generator, Multimeter (view functional parameters for details)
* Standby Time: 6h (laboratory theoretical maximum)
* Language: Chinese and English
* Product Volume: 167*89*35mm
* Channel: Dual channel
* Sample Rate: 250MS/s
* Analog Bandwidth: 50M(dual channel independent 50M)
* Storage Depth: 1Kpts
* Impedance: 1MΩ
* Time Base Range: 10ns-20s
* Vertical Sensitivity: 10mV/div-10V/div (x1)
* Maximum Measured Voltage: ±400V
* Trigger Mode: AUTO/Normal/Single
* Trigger Type: Rising edge, Falling edge
* Display Mode: Y-T/Rolling/X-Y
* Coupling Method: AC/DC
* Persistence: OFF, 500ms, 1s, ∞
* Math: 8 Basic Operations + FFT
* Waveform Screenshot Save: Supported
* Export Waveform Image: Supported
* Cursor Measurement: Supported
* Infinite Afterglow: Supported
