EPOS4 Compact 50/5 CAN, Digital Positioning Controller, 5A, 10-50 VDC

EPOS4 Compact 50/5 CAN, Digital Positioning Controller, 5A, 10-50 VDC

Condition:

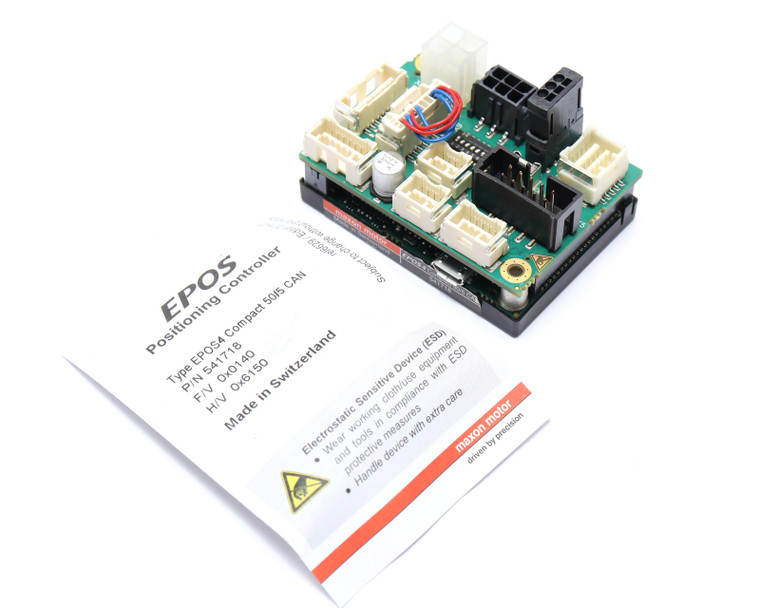

* New surplus stock, no OEM packaging. As pictured.

Additional Notes:
* DC motors up to: 250 W
* EC motors up to: 250 W
* Operating voltage Vcc (min.): 10 V
* Operating voltage Vcc (max.): 50 V
* Logic supply voltage Vc (min.) optional: 10 V
* Logic supply voltage Vc (max.) optional: 50 V
* Max. output voltage (factor * Vcc): 0.9
* Max. output current Imax: 15 A
* Max. time of peak output current Imax: 3 s
* Continuous output current Icont: 5 A
* PWM clock frequency of power stage: 50 kHz
* Sampling rate PI current controller: 25 kHz
* Sampling rate PI speed controller: 2.5 kHz
* Sampling rate PID positioning controller: 2.5 kHz
* Max. efficiency: 97 %
* Max. speed (DC): 100000 rpm
* Max. speed (EC; 1 pole pair) block commutation: 100000 rpm
* Max. speed (EC; 1 pole pair) sinusoidal commutation: 50000 rpm
* Built-in motor choke per phase: 9.4 µH
