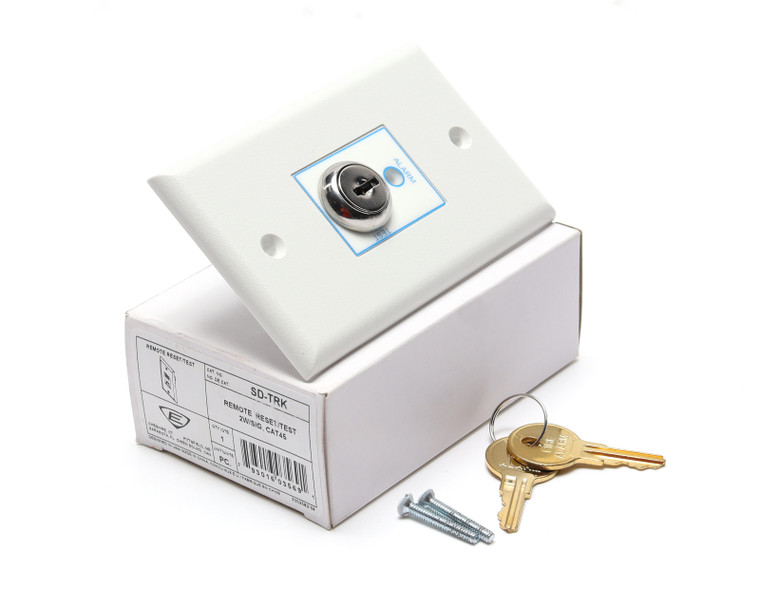

Edwards SD-TRK Remote Test Station, 2 Watt

Edwards SD-TRK Remote Test Station, 2 Watt

Condition:
* New surplus stock, in OEM packaging. As pictured.

Additional Notes:
* Compatible electrical boxes
North American 1-gang box
Standard 4-in square box, 1-1/2 inches deep, with 1-gang cover
* LED indicators: Alarm (red)
* LED type: Clear lens
* Wire size: 12 to 22 AWG
* Resistance per wire: 10 Ω, max.
* Current requirements: Included in controller specification
* LED circuit ratings
       • Voltage: 3 Vdc, max.
       • Current: 30 mA, max.
* Switch ratings (SD-TRK)
       • Voltage: 125 Vdc, max.
       • Current: 4 A, max.
* Switch ratings (SD-TRM)
       • Voltage: 200 Vdc, max.
       • Current: 0.5 A, max.
* Compatible detectors: SuperDuct conventional two-wire and Signature duct smoke detectors
Operating environment
       • Temperature: 0 to 55 °C (32 to 131 °F) Humidity: 93% RH, noncondensing
       • Storage temperature: -20 to 60 °C (-4 to 140 °F)

Edwards Signaling
SD-TRK
