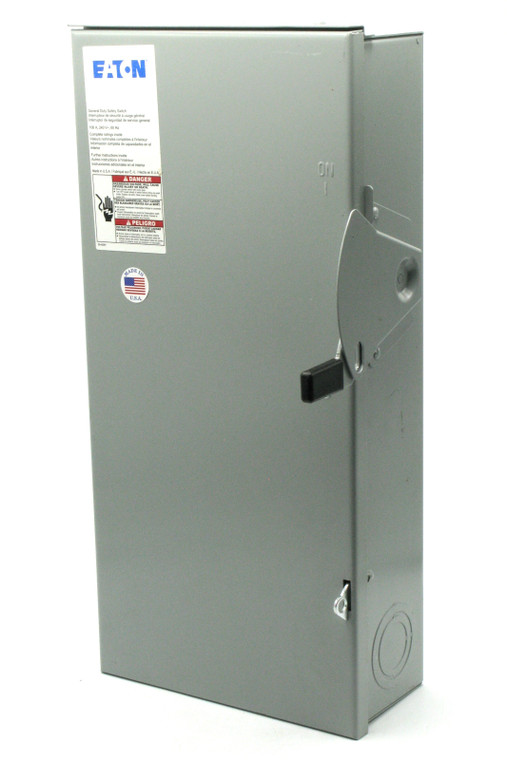

Eaton DG223NRB 240V, 100 Amp 2-Pole NEMA Type 3R Fusible Safety Switch

Eaton DG223NRB, 240 Volt, 100 Amp, 2-Pole NEMA Type 3R Fusible Safety Switch

Condition:
* New Stock, No OEM Packaging. As Pictured.

Additional Notes:
* Rated Voltage: 240 Volt AC
* Rated Current: 100 Amps
* NUmber of Poles: 2
* Fusible With Neutral
* Number of Wires: 3
* Fuse Class: Class H Fuses
* Enclosure Rating: NEMA Type 3R
* Dimensions (LxWxH): 7.38" x 9.13" x 19.25"
* Power Ratings:
     • 240 Volt, 1 Phase: 7.5 HP std - 15 HP Max (5.60kW - 11.19kW)
     • 240 Volt, 3 Phase: 15 HP std - 30 HP Max (11.19kW - 22.38kW)

Eaton
DG223NRB
