Dual-Wall Adhesive-lined Heat Shrink Tubing

SKU:
002739
|
UPC:
0656403616241
$24.95
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 - 49 and get 15% off
  • Buy 50 or above and get 20% off
(No reviews yet)
Width:
5.00 (in)
Height:
2.00 (in)
Depth:
9.00 (in)
Current Stock:
8

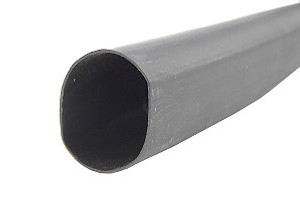

Dual-Wall Adhesive-lined Heat Shrink Tubing

This Dual-Wall 3:1 Shrink Ratio Thermosleeve flexible heat shrinkable tubing is designed for the commercial market.
The typical properties are flame-retardant, good resistance to common fluids and solvents and a high dielectric strength.

It is suitable for a wide range of applications including electrical insulation of electronic component leads, strain relief and cable bonding
It has gained UL 125 Degree C (257 Degree F) recognition and the potential rating is 600 Volt. The UL file is E180908.

Specifications:
* All BLACK, 4" - 62 Count, (20) x 1/18", (20) x 3/16" (10) x 1/4", (5) x 1/2", (2) x 3/4"
* RoHS Compliant
* UL & CSA certified 600 Volt st 125 Degree C
* Shrink Temperature: 90-120 Degree C (194-248 Degree F)
* Operating Temperature Range: -55-125 Degree C (-67-257 Degree F)
* Radial Shrink Ratio: 3:1
* Longitudinal Change: +/- 5%
* Tensile Strength: 10.4 MPa
* Ultimate Elongation Ratio: >200%
* Dielectric Strength: >15 kV/mm
* Fl
