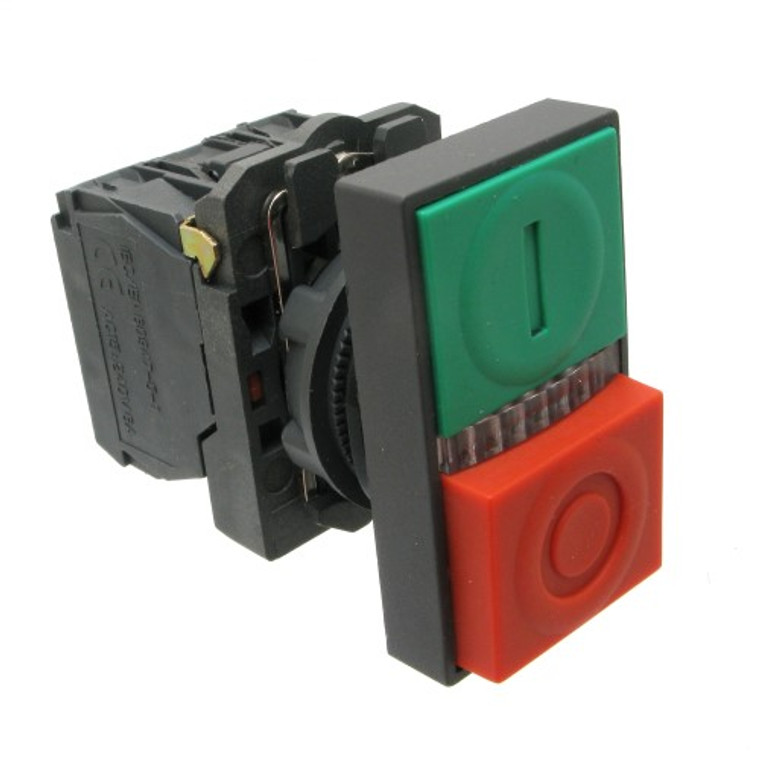

Double-Headed Push Button Switch, Momentary with LED Light

SKU:
007730
$12.50
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 25 - 49 and get 10% off
  • Buy 50 - 99 and get 15% off
  • Buy 100 or above and get 20% off
(No reviews yet)
Current Stock:
85

Double-Headed Push Button Switch, Momentary with LED Light

Momentary Push Button Switches (1 N.O. & 1 N.C. Contact Block)
Extended (4mm) Red Switch is N.C. (~18mm x 27mm)
Flush Green Switch is N.O. (~18mm x 27mm)
Unit has a 220 Volt LED Pilot Light in the Center of the Switch (~3.175mm x 27mm)
Screw Clamp Terminals
Working voltage up to 380 VAC
10 Amp Contact Rating
50/60 Hz
Dimensions:
Switch Overall Length: 56mm
Switch Face is 47mm x 30mm
Front of Switch to Panel is 13.5mm
Contact Block: 32mm (D) x 30mm (L) x 30mm (W)
22mm Install Diameter
This products conforms to IEC60947-5-1 standards.
