CommScope 78EZNM Type N Male EZfit for 7/8" FXL-780, AVA5-50, & AVA5-50FX Cable

CommScope 78EZNM Type N Male EZfit for 7/8" FXL-780, AVA5-50, & AVA5-50FX Cable

Commscope
SKU:
025807
$40.95
(No reviews yet)
Current Stock:
2
Adding to cart… The item has been added
Description

CommScope 78EZNM Type N Male EZfit for 7/8" FXL-780, AVA5-50, & AVA5-50FX Cable

Condition:

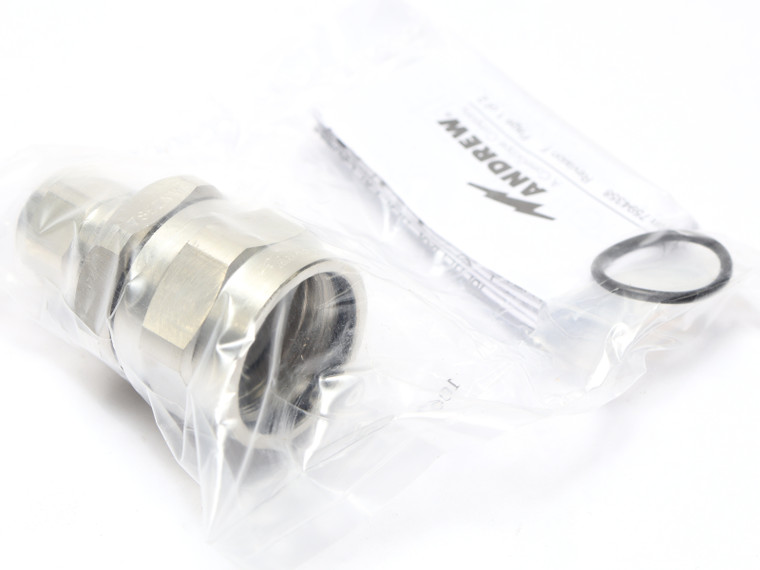

* New surplus stock, in OEM packaging. As pictured.

Additional Notes:
* Body Style: Straight
* Cable Family: AL4-50
* Inner Contact Attachment Method: Captivated
* Inner Contact Plating: Silver
* Interface: N Female
* Mounting: Angle Straight
* Outer Contact Attachment Method: Ring-flare
* Outer Contact Plating: Trimetal
* Length: 2.9 in (73.66 mm)
* Diameter: 0.88 in (22.35 mm)
* Nominal Size: 1/2 in
* 3rd Order IMD at Frequency: -116 dBm @ 910 MHz
* 3rd Order IMD Test Method: Two +43 dBm carriers
* Insertion Loss Coefficient, typical: 0.05
* Average Power at Frequency: 0.6 kW @ 900 MHz
* Cable Impedance: 50 ohm
* Connector Impedance: 50 ohm
* dc Test Voltage: 2500 V
* Inner Contact Resistance, maximum: 1 mOhm
* Insulation Resistance, minimum: 5000 MOhm
* Operating Frequency Band: 0 – 8800 MHz
* Outer Contact Resistance, maximum: 0.25 mOhm
* Peak Power, maximum: 10 kW
* RF Operating Voltage, maximum (vrms): 707 V
* Shielding Effectiveness: -130 dB
