Com-Power PS-400 Near Field Probe Set

Com-Power PS-400 Near Field Probe Set

Condition:
* Used, removed from service. Unable to test.
* Sold as-is. As pictured.

Additional Notes:

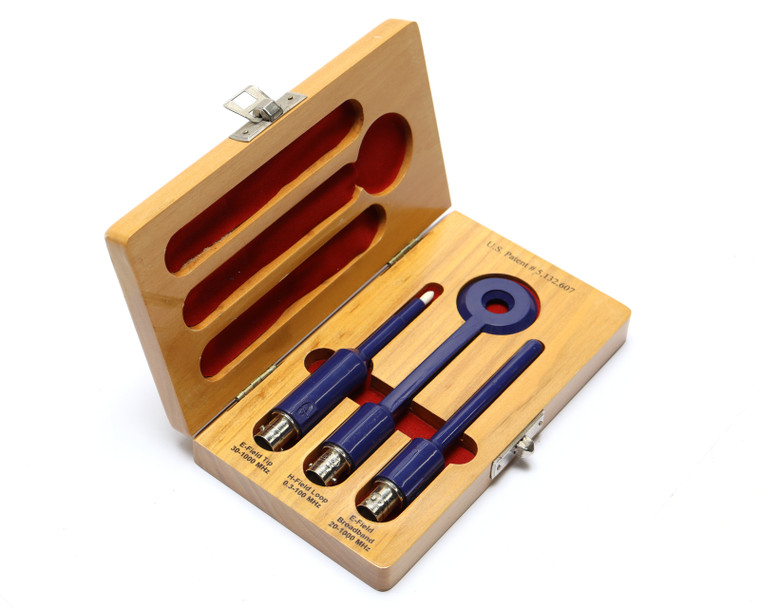

* The set comprises an H-field loop (9 kHz to 5 GHz), a broadband E-field probe (50 kHz to 5 GHz) and a fine tip E-field probe (100 kHz to 5 GHz), each terminated in BNC (female).
* Near field probe set for EMI source location: PCB, cable, and enclosure troubleshooting
* Includes H-field loop and two E-field probes: broadband and fine-tip
* H-field loop probe: 9 kHz to 5 GHz: current-driven magnetic emissions
* Broadband E-field probe: 50 kHz to 5 GHz: fast area scan for hot spots
* Fine-tip E-field probe: 100 kHz to 5 GHz: isolates individual traces and IC pins
* Fine-tip resolution down to 3 mil traces: U.S. Patent #5,132,607
* Shielded loop H-field probe: rejects E-field, responds to magnetic fields
* BNC (female) connector: direct mate to 50 Ω spectrum analyzer / EMI receiver
* 1 kV dielectric breakdown: safe probing near energized circuits
