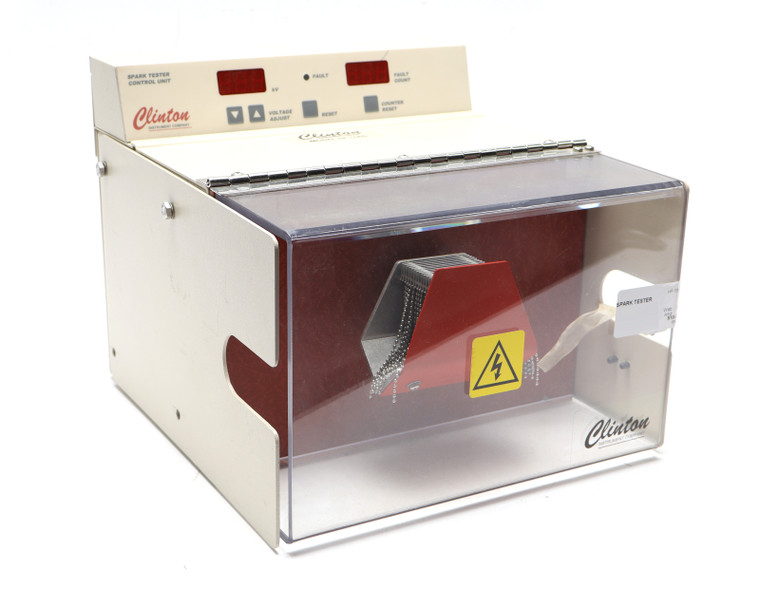

Clinton HF-15AC Digital High Frequency Sine Wave Spark Tester

Clinton HF-15AC Digital High Frequency Sine Wave Spark Tester

Condition:
* Used, powers on, unable to fully test.
* Sold as-is. As pictured.

Additional Notes:
* 3 kHz high frequency spark testing
* Versatile control configurations  & communication options
* Test voltages 500v to 15KV rms
* Digital voltage and fault count displays
* Wide range of electrode styles
* CE approved
* The spark tester is an All-in-One conf iguration-- display panel and spark tester-- with an RS-485 serial interface that can receive and respond to digital commands.
* Spark tester voltage can be set or verified, the fault count and interlock status can be monitored, and many other tasks can be performed by computer or PLC.
* Voltage Test Range: approx. 500 volts to 15KV rms. (Min. test voltage varies on electrode design.)
* Voltage Display: red 3-digit 14.2mm high LED display, accuracy 2% of reading.
* Test Frequency: 1000 to 3500 Hz, depending on load capacitance.
* Output Power: 4 ma. resistive, 40 ma. capacitive.
* Fault Indication: red 3-digit 14.2mm high LED display; amber indicating light.
* Fault Resolution: variable with electrode length to comply with UL fault resolution requirements, which specify detection of faults no farther than 24 inches apart at any wire line speed.
* Detection Sensitivity:
       • Mode 1 per British Standard BS EN 50356
       • Mode 2 per NEMA Standard WC 56
* Operating Modes: Continuous HV/Remove Voltage on Fault, Momentary Process Control/Latch until Reset.
* Process Control: Relay form “C” contacts rated 1 amp max @ 240VAC, 2 amps max @120VAC, for both NO and NC circuits. Front panel or external reset. In non-latch modes, closure time is adjustable in 10 millisecond increments from 50 milliseconds to 2-1/2 seconds.
* Power Requirements: 100 or 120VAC, 2 amps, 200 or 240VAC 1 amp (selectable), 49-61 Hz.

Clinton
HF-15AC
