C&K Systems 7201KD2QE 7000 Series Miniature Toggle Switch

C&K Systems 7201KD2QE 7000 Series Miniature Toggle Switch

C&K Systems
SKU:
022804
$19.95
(No reviews yet)
Current Stock:
4
Adding to cart… The item has been added
Description

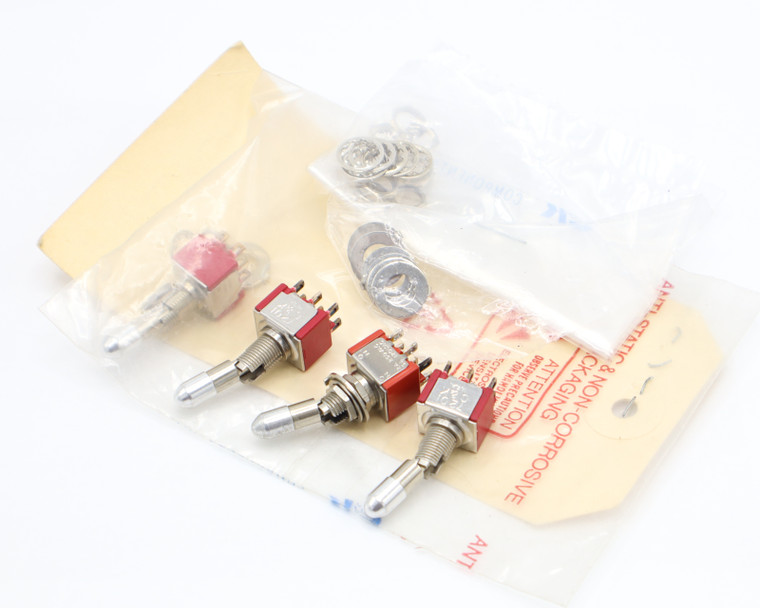

C&K Systems 7201KD2QE 7000 Series Miniature Toggle Switch

Condition:

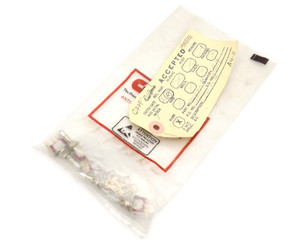

* New old stock, no OEM packaging. As pictured.

Additional Notes:
* Multi-pole and multi-position
* Wide variety of actuator and termination options
* Epoxy terminal-seal compatible with bottom wash cleaning
* Contact Rating: Gold contact material: 0.4 VA max. @ 20 V AC or DC max. Silver contact material: 5 A @ 120 V AC or 28 V DC; 2 A @ 250 V AC. See datasheet additional ratings
* Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load. All other models: 40,000 cycles
* Contact Resistance: Below 10 milliohms typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts
* Insulation Resistance: 10⁹ ohms min.
* Dielectric Strength: 1000 Vrms min. @ sea level
* Operating Temperature: –30ºC to 85ºC
* Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)

C&K Systems
7201KD2QE
