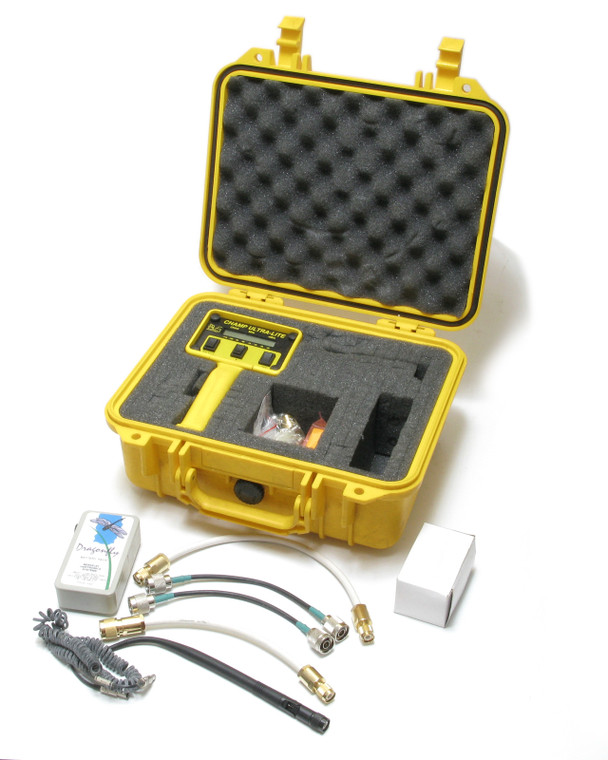

Berkeley Varitronics Systems Champ Ultra-Lite Handheld RF Meter

Berkeley Varitronics Systems Champ Ultra-Lite Handheld RF Meter

Berkeley Varitronics
SKU:
021467
$99.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

Berkeley Varitronics Systems Champ Ultra-Lite Handheld RF Meter

Condition:
* Used, Powers On. Unable To Test Further. As Pictured.

Additional Notes:
* LCD Display: 2 x 16 Alphanumeric STN
* Tuning Range: 20-40 MHz of Band
* Bands Supported
     • ISM: 2.4-2.485 GHz
     • ISM: 900-930 MHz
     • Paging: 450-465, 928-941 MHz (12.5 or 25 kHz Steps)
     • PCS: 1850-1910, 1930-1995 MHz
     • LMR: 805-825, 850-870 MHz
     • Cellular: 824-848, 868-896 MHz (30kHz Steps)
     • ETACS: 872-905, 915-950 MHz (25 kHz Steps)
     • IVDS: 218-219 MHz
* Sensitivity: -110 to -35 dB ± 1.5 dB, 30 kHz IF Bandwidth for -12 dB SINAD
* Adj. Chan Rejection: > 50 dB @ 30 kHz
* Measurement Accuracy: ± 1.5dB
* Speed of  Measurements:
     • 20/Second (Averaged)
     • 32 Samples/Measurement
* Channel Scan Rate: 20 Channels/sec (normal)
* Channel Step Size: 12.5 kHz or 25 kHz
* Dual Conversion:
     • 83 MHz First IF
     • 455 kHz Second IF
* IF Bandwidth: 12.5 kHz (Standard)
* Stability: ± 2.5 PPM from 32° to 120°F
* Phase Noise: > 80 dBc @ 1 kHz Offset
* Antenna: TNC Right Angle 50 Ω Whip
* Dimensions (LxWxD): 6" x 4" x 3"

Berkeley Varitronics Systems
Champ Ultra-Lite
