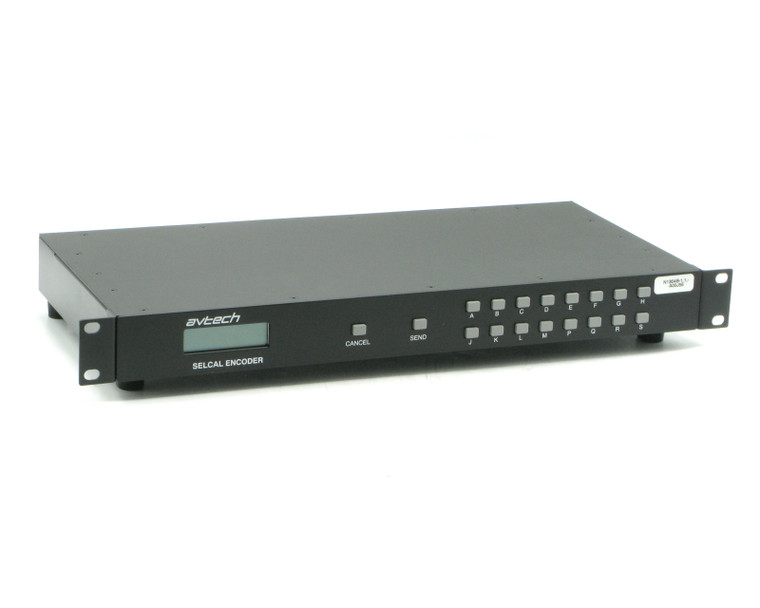

AVtech ARINC 714 N1304B-1 Selcal Encoder

AVtech ARINC 714 N1304B-1 Selcal Encoder

Avtech
SKU:
020891
$199.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

AVtech ARINC 714 N1304B-1, Selcal Encoder

Condition:
* New Old Stock, No OEM Packaging. As Pictured.

Additional Notes:
* Highly Visible LCD Display
* 16 Push-Button Front Panel Code Entry With Key Click Feedback
* Convenient front panel access to code SEND and code CANCEL pushbuttons
* Code Send Indicator
* Self Test Capability
* 120/240 Volt 50-60 Hz Internal Power Supply
* Computer interface via an RS-232 connection
* Software module which can externally generate codes and transfer them to the Encoder
* Auxiliary relay for keying or audio switching
* Tone Capacity: 16
* Tone Accuracy/Stability: ±0.15% of nominal tone frequency from 0 to +50ºC
* Tone Balance: ±0.5dB over entire frequency range
* Code Readout (Display): Four characters, each aprox. 0.5” high
* Maximum Audio Output: +10dBm Into 600 Ω Load (~7vp-p)
* Hum and Noise Level: Less Than -38 dBm at Output
* Power Input Nominal: 120 Volt AC or 240 Volt AC 50-60 Hz Range:  100-120 Volt AC or 200-240 Volt AC, 47-63 Hz
* Power Drain: 20 Watt Maximum
* Code Entry: 16 button keypad or software control via RS-232 connection
* Mounting: Desk Top With Tilt Stand or 19” Equipment Rack
* Dimensions: 1U, 19” Rack Mount Chassis, 10.25” Deep Maximum

AVtech
N1304B-1
