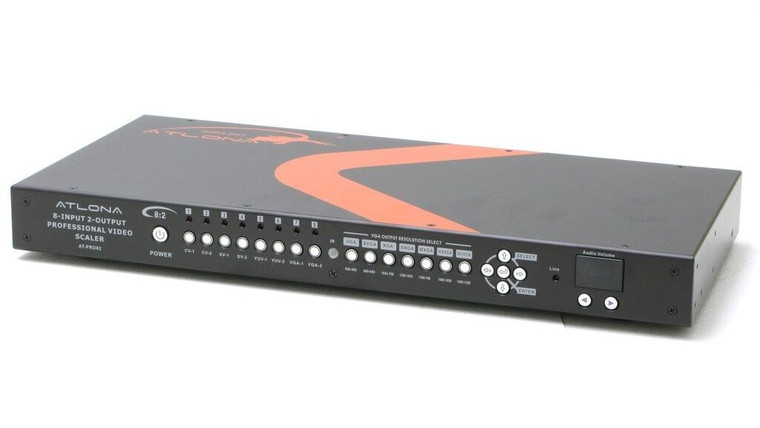

Atlona AT-PRO82 8x2 Professional Video Scaler

Atlona AT-PRO82 8x2 Professional Video Scaler

Condition:
* Appears to be new, unused, but has technical issues.
* S-video inputs unstable
* Switching between any source to VGA is glitchy.
* Being sold for parts as-is.

Additional Notes:
* Inputs:
     • 2x Composite Video & stereo audio inputs
     • 2x S-Video with stereo audio inputs
     • 2x Component Video with stereo audio inputs
     • 2x VGA with stereo audio inputs
* Outputs:
     • 2x VGA with Stereo Audio Ouputs
* Auto Detection TV Video System: NTSC-M 3.58, NTSC-J, 4.43, PAL-B-D-G-H-K, PAL-M, PAL-N, PAL-N COMB N, SECAM (Impedance: 75Ω)
* OSD Mene Selections: Adjust Color: Contrast, Brightness, Sharpness, Level & Gain
* Video Bandwidth: 250MHz (-3dB)
* Audio Bandwidth: 60MHz (-3dB)
* Audio Frequency Response: 20Hz to 20kHz
* Input Source Resolutions:
     • CVBS/S-Video for Standard TV Video System
     • Component Video (YPbPr) for 480p, 720p & 1080p
     • VGA for VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), or (1920x1200HD) Maximum
* Unit Output Resolutions: VGA for SVGA, XGA, SXGA, WXGA, WSXGA or WUXGA (1920x1200HD)
* Control: Direct front panel menu, RS-232, and IR Remote Control
* RS-232 Control: 9600bps, No Parity, 8bits, 1 stop bit
* Safety Approvals: CE, FCC, RoHS(2002/95/EC)
* Dimensions (LxWxH): 19" x 7.87" x 1.75" (482mm x 200mm x 44mm)

Atlona
AT-PRO82
