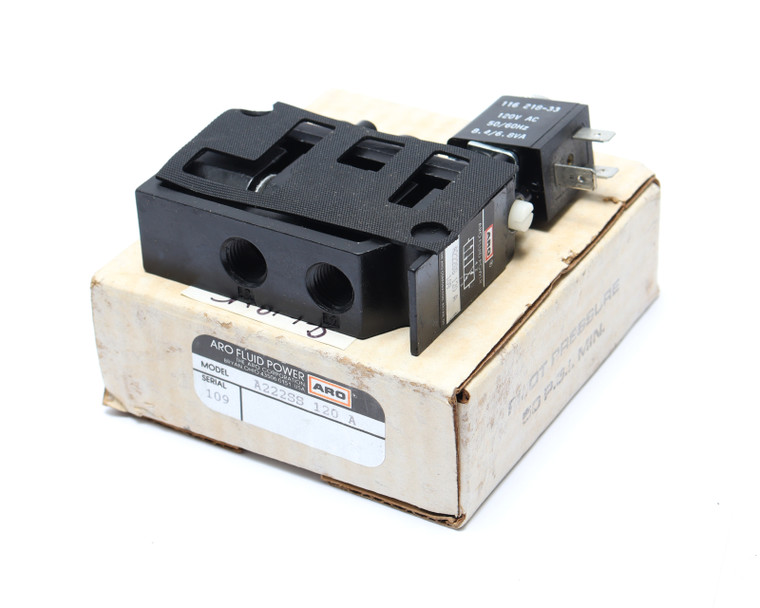

ARO A222SS-120-A Solenoid Air Control Valve, 1/4in Female

ARO A222SS-120-A, Solenoid Air Control Valve, 1/4" Female

This Tiny Titan Packs a Serious Punch ForYour Pneumatic Needs! Measuring Just 1/4", This ARO Solenoid Valve Is The Ultimate Solution For Precise Air Control In Tight Spaces.

Condition:
* New Surplus Stock, No OEM Packaging. As Pictured.

Additional Notes:
* Series: Alpha
* Product Type: Solenoid Air Control Valve
* Voltage: 120 Volt AC
* Actuator Type: Single Solenoid
* Body Style: Base-Mounted
* Pilot Type: Internal Pilot
* Flow Rate - Maximum: 63 cfm
* Return Action: Spring Return
* Includes Solenoid Coil: Solenoid Coil Included
* Coefficient of Volume (Cv): 1.9
* Response Time: 22 msec
* Override: Non-Locking
* Electrical Connection Type: DIN Solenoid Connector
* Valve Action: Normally Open
* Manufacturer Part Number: A222SS-120-A
* Brand: ARO
* Number of Ways: Four-Way
* Number of Positions: Two-Position
* Operating Pressure - Maximum: 150 psi
* Operating Temperature - Minimum: 0°F
* Operating Temperature - Maximum: 180°F
* Overall Height: 3-7/8"
* Overall Width: 1"
* Overall Length: 3-7/16"
* For Media: Compressed Air; Inert Gas
* NEMA Rating: 4
* Standards: cURus Listed
* Inlet Port Connection Size: 1/4"
* Inlet Port Connection Type: NPT
* Pilot Port Connection Type: NPT
* Power Consumption: 5.4 Watt
* Vacuum Rating: Vacuum Operable
* Lubrication: Lubrication Not Required
* Pilot Port Connection Gender: Female
* Valve Type: Spool
* Inlet Port Connection Gender: Female
* Body Material: Zinc
* Body Features: Stackable
* Pilot Port Connection Size: 10-32
* Sub-brand: ALPHA
* Spool Material: Aluminum
* Exhaust Port Connection Gender: Female
* Exhaust Port Connection Size: 3/8"
* Exhaust Port Connection Type: NPT
* Fail Position: Open

ARO
A222SS-120-A
