Arduino UNO Clone with WiFi

Arduino UNO Clone with WiFi

SKU:
025806
$10.95
(No reviews yet)
Current Stock:
10
Adding to cart… The item has been added
Description

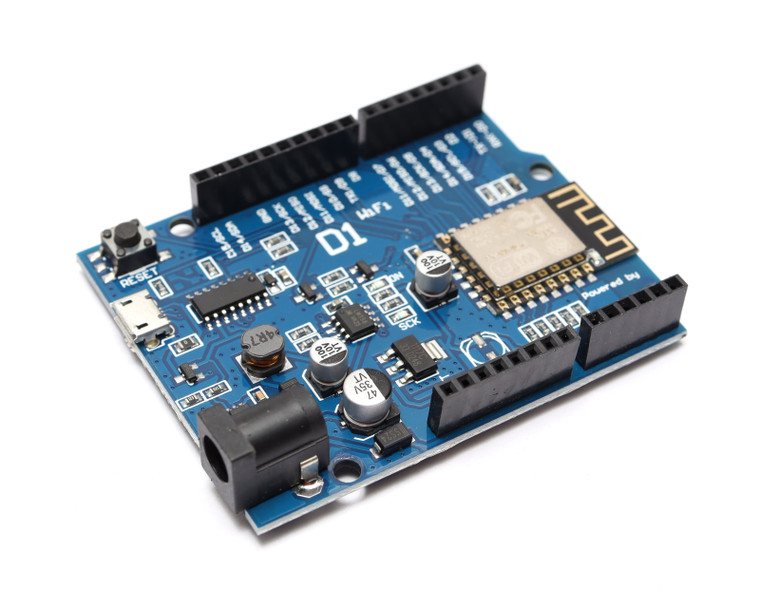

Arduino UNO Clone with WiFi

Additional Notes:
* WeMos D1 Arduino UNO-R3® WiFi (802.11 b/g/n) enabled compatiable controller. Same size & shape as UNO
* Accepts most Plug-in modules for the Arduino controller.
* NOTE: Programs using free Arduino IDE available from www.arduino.cc
* Power: 9-24VDC Not included
* Processor: 80Mhz ESP8266 RISC CPU
* Digital I/O: 11 with PWM available on all
* Analog Input: 1 (A0) (3.2V max) A1-5 not available
* Memory: Flash: 4Mb
* SRAM: 96Kb
* EEPROM: 64Kb
* USB Bridge: CH340G USB/TTL (Driver available from many sites)
* .1in. Pitch female headers for direct connection to functions
* USB port: Micro Type B female
* Power Port: 5.5mm X 2.1mm Jack
* L: 3” O/A W: 2-1/8” H: 3/8”
