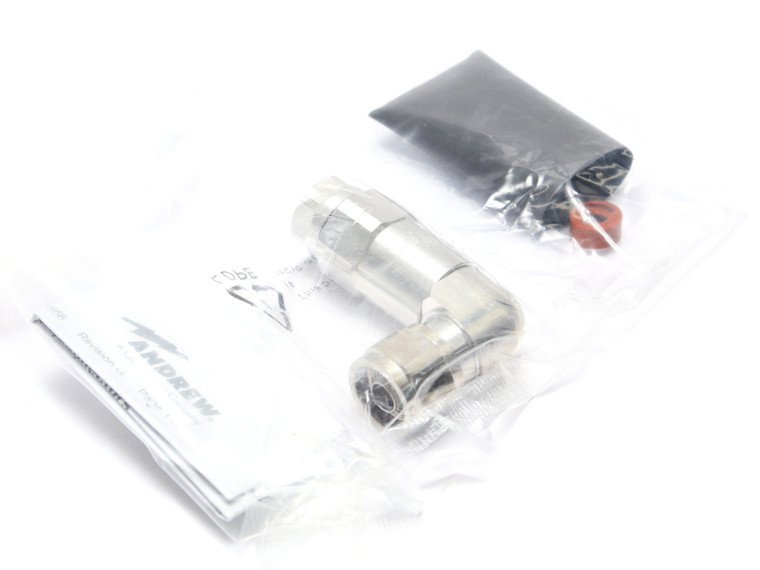

Andrew F4NR-HC Type N Male Right Angle for 1/2" FSJ4-50B Cable

Andrew F4NR-HC Type N Male Right Angle for 1/2" FSJ4-50B Cable

Andrew
SKU:
025833
$22.00
(No reviews yet)
Current Stock:
5
Adding to cart… The item has been added
Description

Andrew F4NR-HC Type N Male Right Angle for 1/2 in FSJ4-50B Cable

Condition:
* New Surplus Stock, in OEM packaging. As Pictured.

Additional Notes:
* Body Style: Right angle
* Cable Family: FSJ4-50B
* Inner Contact Attachment Method: Captivated
* Inner Contact Plating: Gold, Silver
* Interface: N Male
* Mounting Angle: Right angle
* Outer Contact Attachment Method: Self-flare
* Outer Contact Plating: Trimetal
* Pressurizable: No
* 3rd Order IMD at Frequency: -116 dBm @ 910 MHz
* 3rd Order IMD Test Method: Two +43 dBm carriers
* Insertion Loss Coefficient, typical: 0.05
* Average Power at Frequency: 0.6 kW @ 900 MHz
* Cable Impedance: 50 ohm
* Connector Impedance: 50 ohm
* dc Test Voltage: 2000 V
* Inner Contact Resistance, maximum: 2 mOhm
* Insulation Resistance, minimum: 5000 MOhm
* Operating Frequency Band: 0 – 10200 MHz
* Outer Contact Resistance, maximum: 0.3 mOhm
* Peak Power, maximum: 10 kW
* RF Operating Voltage, maximum (vrms): 707 V
* Shielding Effectiveness: -110 dB
