Andrew F1PNF-BH Type N Female Connector, 50 ohm

Andrew F1PNF-BH Type N Female Connector, 50 ohm

Andrew
SKU:
020765
$13.49
(No reviews yet)
Current Stock:
43
Adding to cart… The item has been added
Description

Andrew F1PNF-BH, Type N Female Connector

Condition:

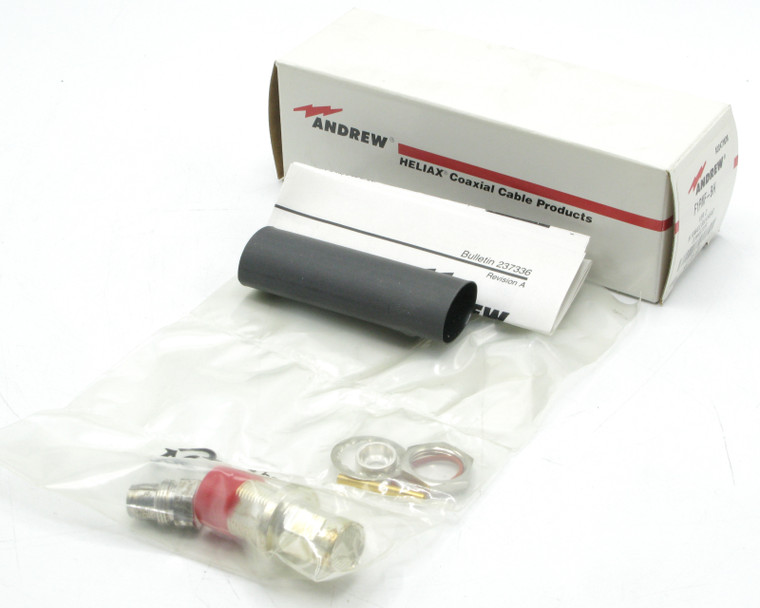

* New Old Stock, In OEM Packaging. As Pictured.

Additional Notes:
* Body Style: Bulkhead
* Cable Family: FSJ1-50A
* Inner Contact Attachment Method: Solder
* Inner Contact Plating: Gold
* Connector Type: N Female
* Mounting Angle: Straight
* Outer Contact Attachment Method: Self-Clamping
* Outer Contact Plating: Silver
* Dimensions (DxL): 0.870" x 2.010" (22.1mm x 51.05mm)
* Average Power At Frequency 0.4 kW @ 900 MHz
* Cable Impedance: 50 Ω
* Connector Impedance: 50 Ω
* DC Test Voltage: 1600 Volt
* Inner Contact Resistance, Maximum: 1 mΩ
* Insulation Resistance, Minimum: 5000 mΩ
* Operating Frequency Band: 0 – 6000 MHz
* Outer Contact Resistance, Maximum: 0.25 mΩ
* Peak Power, Maximum: 6.4 kW
* RF Operating Voltage, Maximum (Vrms): 565 Volt
* Shielding Effectiveness: -110 dB

Andrew
F1PNF-BH
