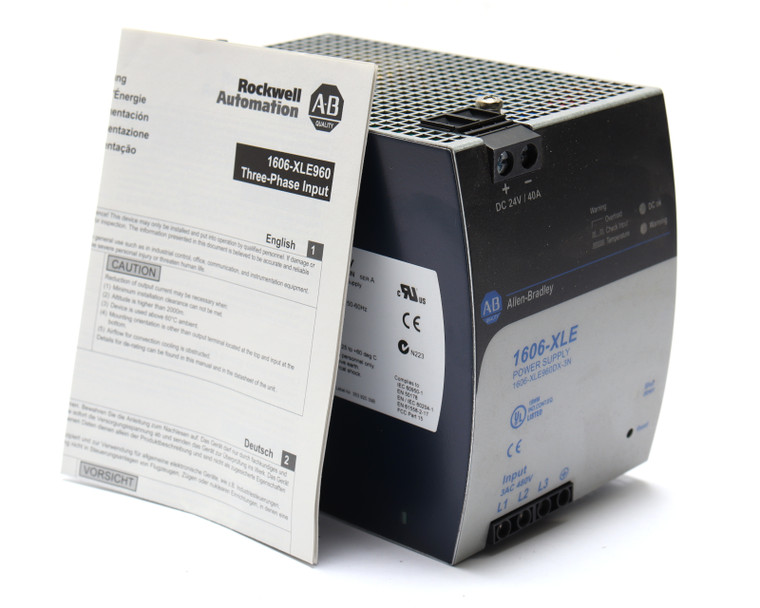

Allen Bradley 1606-XLE960DX-3N 480VAC Input 24VDC Out 40 Amp Power Supply

Allen Bradley 1606-XLE960DX-3N, 480 Volt AC Input 24 Volt DC Out 40 Amp Power Supply

Condition:
* Used, Removed From Service In Working Condition. Like New.
* As Pictured.

Additional Notes:
* Input Circuit Protection: 6 A Slow Blow Fuse or Cat. No. 1489-A3C060
* Input Voltage Range: 408-552 Volt AC
* Nominal Value Output Voltage 1: 24 Volt
* Secondary Voltage Adjustable: True
* Max. Output Current 1: 40 Amp
* Nominal Value Output Current 1: 40 Amp
* Power Output: 960 Watt
* Voltage Type of Supply Voltage: AC
* 1^st Secondary Output Voltage: 24 Volt
* Rated Supply Voltage at AC 50 Hz: 400 Volt
* Rated Supply Voltage at AC 60 Hz: 400 Volt
* Power Reserves: 25 %
* Input Inrush Current Limiter: Active
* Power Factor: 0.93 Typical
* Output Current Range: 40 Amp
* External Input Fuse, Min: B-6 A or C-3 A
* Power Losses: 45.2 Watt Typical
* Derating: 24 W/°C
* Efficiency: 95.5 % Typical
* Input Inrush Current: 2 Amp
* Special Feature: Semi-Regulated
* Output Voltage Stabilized: True
* Rail Mounting Possible: True
* Stabilized: True

Allen Bradley
1606-XLE960DX-3N
