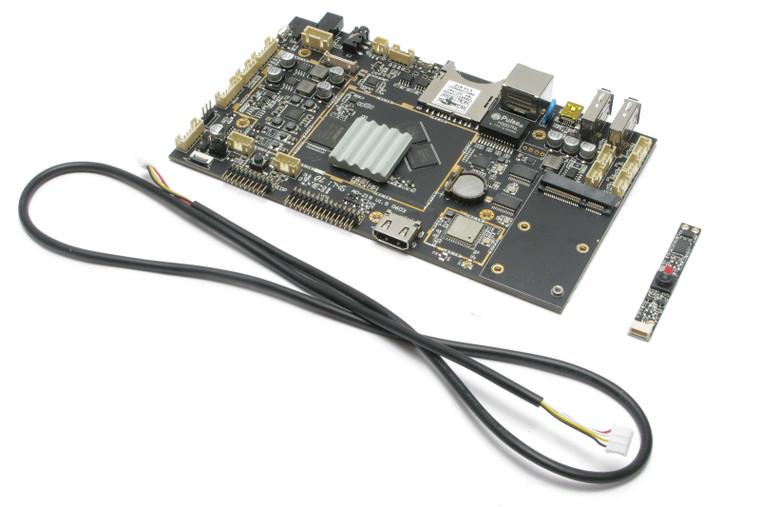

ADW AD-Z19 Embedded System Board, Android OS w/DC In, Dual Screen Interface

(No reviews yet)
Current Stock:
Adding to cart… The item has been added

ADW AD-Z19, Embedded System Board, Android OS w/DC In, Dual Screen Interface

* New Surplus Stock, No OEM Packaging (Except ESD Bag).
* As Pictured.

Additional Notes:
* CPU: Rockchip RK3288 quad-core Cortex-A17 quad-core GPU Mali-T764
* Frequency: 2.2 GHz
* RAM: LPDDR3 2G/4G Optional
* Built-in storage capacity: EMMC 8GB/16G/32G Optional(label 8GB,support NAND FLASH)
* Display interface:
     • LVDS interface(Single, 6-way, 8-way dual). Support maximum resolution 1920x1080, support 7"-82" display.
     • EDP port, maximum resolution: 4K*2K
* Mainboard backlight: Support 3.3 Volt/5 Volt/12 Volt Optional
* Touch screen:
     • Provide I2C interface (can support multi-point resistance touch, multi-point capacitive touch).
     • Support USB multi-point infrared touch, multi-point sound saw touch, multi-point optical touch.
* Network:
     • RJ45 interface, 10/100/1000M Ethernet.
     • With wifi & BT module, support Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0
* Image rotation: Support 0 degree,90 degree,180 degree,270 degrees manual / automatic rotation, support gravity sensing function.
* Real Time Clock: Built-in real-time clock powered battery
* Interface device:
     • Support DVP interface camera, the maximum support 500W pixels
     • Support USB camera
     • Support VGA,1280*720 output
     • 5 USB HOST,1 USB OTG
     • 3 serial ports. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
     • 3 IO detection ports
     • SD CARD,maximum support 32 GB
     • D class large built-in speaker,3W*2 4R
     • Support for microphones
* Audio: MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
* Video:
     • Support 2160P @ 24FPS decoding such as H.264, MPEG2, VP6, VP8, MVC and other video formats.
     • YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
* Picture: JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
