ADC 6810 18AWG 10-Conductor Type TC-ER Direct Burial Control & Power Tray Cable

ADC 6810 18AWG 10-Conductor Type TC-ER Direct Burial Control & Power Tray Cable

Advanced Digital Cable
SKU:
012817
$0.78
(No reviews yet)
Current Stock:
3650
Adding to cart… The item has been added
Description

ADC 6810, 18 Gauge 10-Conductor, Type TC-ER Direct Burial Control & Power Tray Cable

Condition:

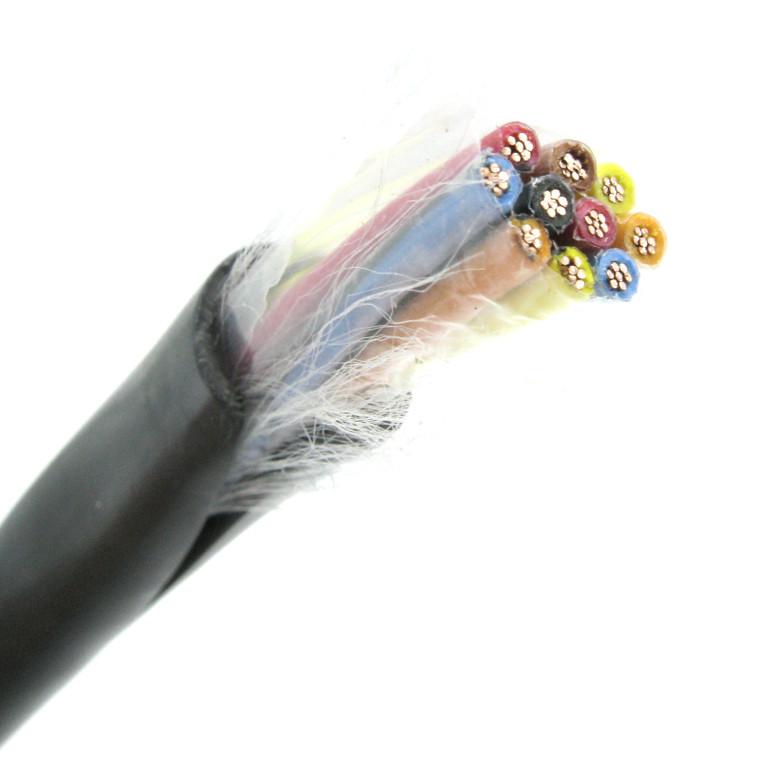

* New Surplus Stock, Cut To Order. As Pictured.

Additional Notes:
* Conductor Size: 18 Gauge (Stranding: 7x26)
* Conductor Material: Soft Drawn Annealed Bare Copper
* Number of Conductors: 8
* Insulation: PVC
* Shielding: N/A
* Outer Jacket Material: PVC
* Current Rating: 6 Amps Per Conductor at 25°C
* Voltage Rating: 600 Volts
* Colors: 2x Blue, 2x Red, 2x Yellow, 2x Orange, Black, Brown
* Temperature Range: -39°C to +90°C
* UL Rating: 90°C Dry or Wet
* Outer Diameter: 0.435"
* Industry Standards:
     • UL Listed as TC-ER per UL Standard 1277*
     • Rated -39°C to 90°C
     • OSHA Acceptable
     • NEC Articles 392 & 336
     • CSA FT4
     • IEEE 1202 70,000 BTU Flame Test
     • ASTM - All Applicable Standards
* Surface Printing: ADVANCED DIGITAL CABLE,  INC. 18 AWG 10 TYPE TFN CNDR K2 (UL) TYPE TC OR TC-ER 90C SUN RES DIR BUR 600V FT4/IEEE1202 E195597 MADE IN USA 241207

Advanced Digital Cable, Inc.
6810
