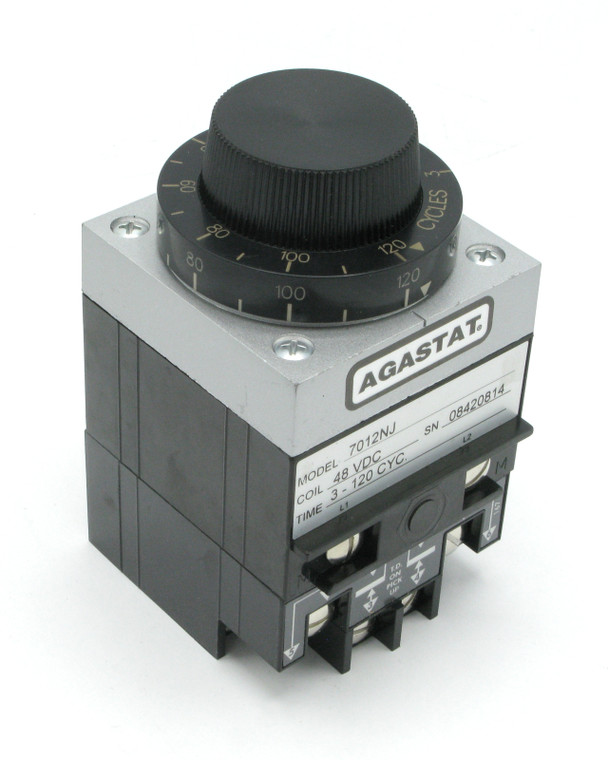

Agastat 7012NJ DPDT Time Delay Relay, 10 Amps, 48VDC Coil

Agastat 7012NJ, DPDT Time Delay Relay, 10 Amps, 48 Volt DC Coil

Condition:
* New Surplus Stock, No OEM Packaging. As Pictured.

Additional Notes:
* Terminal Configuration: Screw Terminals
* Coil Voltage: 48 Volt DC
* Contact Arrangement: 2 Form C, DPDT, 2 C/O
* Type of Control: Knob
* Contact Voltage Rating: 240 Volt AC
* Contact Current Rating: 10 Amps Max.
* Delay Time: 3 – 120 Cycles
* Product Mount Type: Chassis
* Product Mounting Feature Type: Mounting Brackets
* Dimensions: 78.4mm x 114.8mm x 82.55mm (3.09" x 4.52" x 3.25")
* Operating Temperature Range: -30°C to +75°C
* Mode of Operation: On-Delay
* Repeatability (Max): ±10%

Agastat
7012NJ
