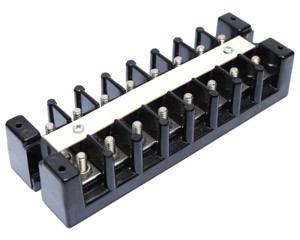

8 Position Terminal / Barrier Strip, 75 Amp
Marathon
$5.95
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 24 and get 10% off
- Buy 25 or above and get 12% off
(No reviews yet)
Write a Review
Marathon
8 Position Terminal / Barrier Strip, 75 Amp
8 Position Terminal / Barrier Strip, 75 Amp
Marathon 1500 Series
Heavy Duty Terminal Block, 600 Volts AC/DC (UL/CSA)
Base, General Purpose Phenolic, 150 Degree C (UL RTI)
Connector, Brass, Nickel Plated
Phil-Slot Screws, Brass, Nickel Plated, 10-32
Current rated up to 30 Amps with unprepared wire, #10-22 AWG Copper
Current rated up to 75 Amps when wired with crimp type ring, spade or fork terminal
5/8 Inch (0.625") Line To Line Spacing
UL Recognized File No. XCFR2.E62806
CSA Certified File No. LR19766
CE - 1000 Volts
RoHS Compliant
5-3/4" (L) x 2" (W) x 1-3/16" (H)
Marathon
1508 STD
Marathon 1500 Series
Heavy Duty Terminal Block, 600 Volts AC/DC (UL/CSA)
Base, General Purpose Phenolic, 150 Degree C (UL RTI)
Connector, Brass, Nickel Plated
Phil-Slot Screws, Brass, Nickel Plated, 10-32
Current rated up to 30 Amps with unprepared wire, #10-22 AWG Copper
Current rated up to 75 Amps when wired with crimp type ring, spade or fork terminal
5/8 Inch (0.625") Line To Line Spacing
UL Recognized File No. XCFR2.E62806
CSA Certified File No. LR19766
CE - 1000 Volts
RoHS Compliant
5-3/4" (L) x 2" (W) x 1-3/16" (H)
Marathon
1508 STD
