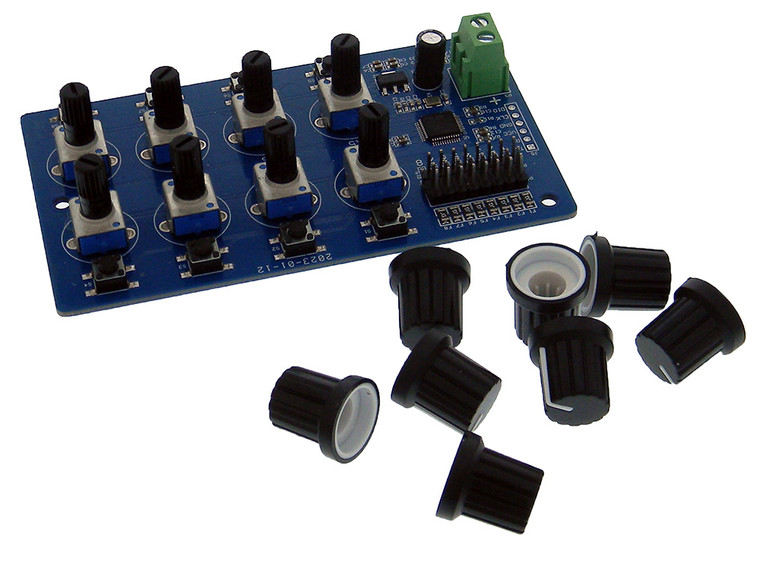

8 Channel MG995-SG90 Servo Debug-Test Board
Additional Notes:
* Test board allows for the testing & control of up to 8 RC servos. Supports Huisheng, Futaba * MG995 SG90 and other 5V servos.
* Channels: 8
* Control period: 20ms
* Pulse Width: 0.5-2.5ms
* Control Accurcy: 0.09°
* Mode: Button Switch
* Manual: Adjustment Knob controls motion.
* Auto: Centers the Servo
* LED Indicators for Power, Manual & Center
* Power Supply Range: 5-9V (Use the voltage rating of the servo.)
* Each channel has self-recovery fuse to prevent burn out
* Connections:
• Power: Terminal Strip
• Servos: 3 Pin 0.1" (2.54mm) Pitch header matching most servos.
* Dimensions (LxWxH): 100mm x 55mm x 28mm (4-1/16" x 2-1/4" x 1-1/8")
