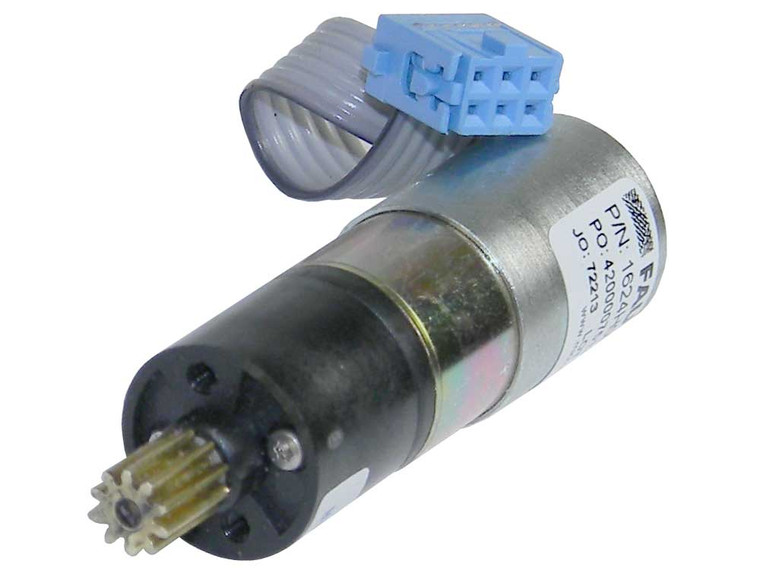

6VDC, 66RPM Gearhead Motor, Instrument Grade

SKU:
025503
$34.95
(No reviews yet)
Current Stock:
12
Adding to cart… The item has been added

6VDC, 66RPM Gearhead Motor, Instrument Grade

Additional Notes:
* MFG: FAULHABER
* P/N: 1624H0013
* Voltage: 6VDC
* RPM: ~66 RPM @ 6VDC/30mA No Load; 1.5A Stall
* Instrument grade gearhead motor with 2 channel, 16 Pulse/Rev. encoder.
* Metal & plastic multi stage 141:1 gearhead.
* Shaft Dimensions: 3mm diameter x 8mm long shaft
* Gear: 10 tooth, 6mm dia. Brass gear.
* 2in. flat cable with a 0.1in pitch 2 x 3 header socket.
* Two 2-56 threaded mtg. holes.
* Dimensions (LxDia): 1-15/16" x 5/8:
