4-20mA Current Loop Signal Generator

Name: 4-20mA Current Loop Signal Generator
Brand: MPJA
SKU: 025581
Price: 16.95 USD
Availability: OutOfStock

MPJA

SKU:

025581

$16.95

(No reviews yet)

Current Stock:

Out of stock

Out of Stock

Facebook
Email
Print

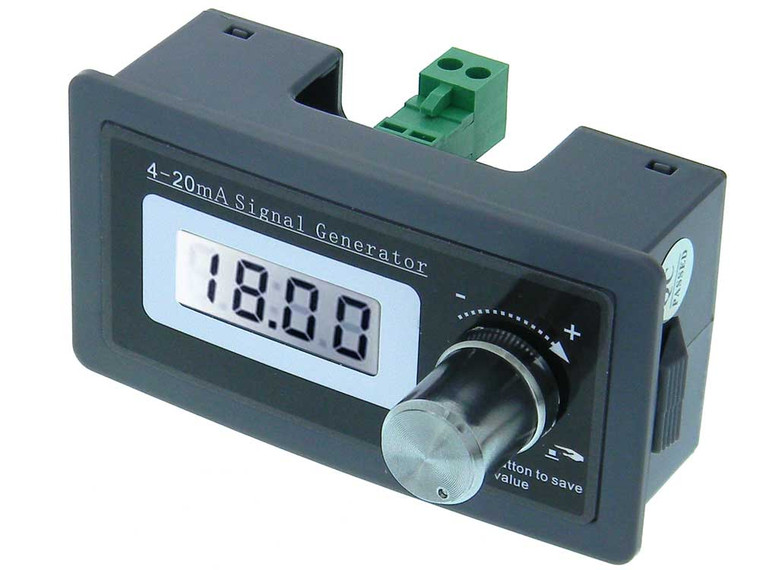

4-20mA Current Loop Signal Generator

Additional Notes:
* Small panel mounted, snap-in, Current Loop Simulator with backlit LCD Display. Can be used to simulate Controller or Sensor.
* Passive, non-polarized 2 wire system, compatible with 2, 3, 4 wire system, Linear output that can be calibrated
* Rotary encoder/Button for setup & testing.
* Programmable Output to simulate sensor signals, Set 2-9 points to adjust, set 1-9 curve segments.
* Supply Voltage: 15V - 30V;
* Output Range: 4-20mA / 3-21mA;
* Display Mode: Actual Current / 0-100.0% / 0-50.0Hz;
* Sampling Resistance: < 500 Ohms;
* Output Accuracy : ± 5%; Display Accuracy: 0.01
* Cutout: 77mm x 40mm
* Dimensions (WxHD): 79.5mm x 42.2mm x 25.5mm (Body)
* Overall Depth: 50mm
