3M CTC338-WW Wrist Strap and Ground Monitor

3M CTC338-WW Wrist Strap and Ground Monitor

3M
SKU:
021917
$99.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added
Description

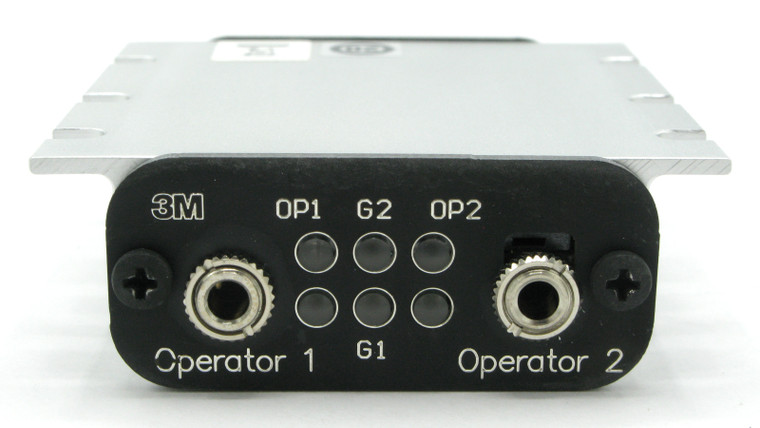

3M CTC338-WW, Wrist Strap and Ground Monitor

Condition:
* Used, Sales Sample. In OEM Packaging.

Additional Notes:
* Ground Impedance Alarm Level: 1 to 20 Ohms
* Wrist Strap Alarm-Body Voltage: ±2.5 Volt on Operator
* Wrist Strap Alarm - Operator Loop Resistance: 10 Megohms on Operator (Plus Two 1 Megohm Resistors in the end of the ground cord that attaches to the wristband)
* Output Signal Level
       • Logic 1 (+5 Volt) if below selected resistance level (all "pass")
       • Logic 0 (0 Volt) if above selected resistance level (any failure or power loss)
* Visual Alarm Indicator (LED):
       • Green: OK
       • Red: Fault Condition
* Audible Alarm: Buzzer Fault Condition if Enabled
* Operating Environmental Range: Temperature: 50°F to 110°F (10°C to 43°C)
* Humidity: 75% R.H. Maximum
* Dimensions: 2.42" x 2.45" x 0.85" (61 mm x 62 mm x 22 mm)
* Power Adapter: 100-240 Volt AC 50-60 Hz
* Output: 12 Volt DC @ 1.5 Amp

3M
CTC338-WW
SCS 773
