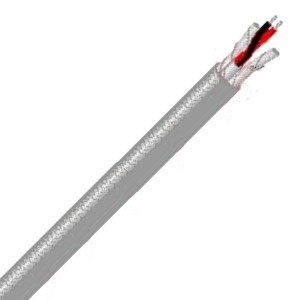

3-Pair 22 AWG Individually Shielded Pair Cable - Type CM Belden Equivalent 8777 - 1000 Foot

General Cable
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 3 or above and get 5% off
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

Multi-Paired, Individually Shielded Cable
3-Pair (6 Conductor) 22 Awg Individually Shielded Pair Cable - Type CM

22 Gauge Fully Annealed Tinned Copper
Stranding: 7 x 30 Gauge
Individually Shielded Twisted Pairs
Length: 1000 Foot

Premium-grade, CoIor-coded Polypropylene
Color Code: (Black & Red); (Black & White); (Black & Green)

Individually Shielded Pairs
100% Aluminum/Polyester, 25% Overlap, Foil Facing Out
24 Gauge Tinned Drain Wire

Grey PVC jacket
Nominal OD: 0.292"
Temperature Range: -20 Deg. C to +80 Deg. C

Where Total Isolation of Signal is Required
Control Circuits
Industrial Equipment
Suggested Voltage Rating: 30 Volts

CSA CMH (CSA: 60 Degree C)
UL Style 2919 (UL: 80 Degree C, 30 Volt)
NEC Article 800 Type CM (UL: 75 Degree C, 30 Volt)
RoHS Compliant Directive 2002/95/EC
Designed to Meet CSA 70,000 BTU Vertical Tray Flame Test
Passes CSA CMH Flame Test

General Cable # C6040
Belden Equivalent= 8777

Note: This wire is shipped directly from the manufacturer. It is not available for pick up at the store. Pricing may vary from the retail store price.

Please be sure of your purchase - At our discretion, cut or measured purchases may not be returnable or may be subject to up to a 25% restocking fee. Also, any shipping charges (Including return shipping or Delivery Intercept fees) incurred are non-refundable.
