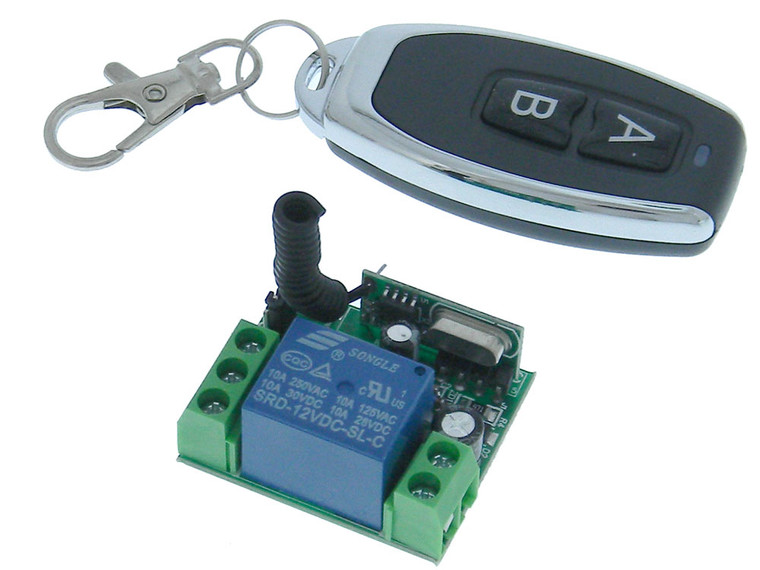

3 Mode Wireless Remote Control Relay - 1 Channel, 12V

SKU:
025758
$8.95
(No reviews yet)
Current Stock:
1
Adding to cart… The item has been added

3 Mode Wireless Remote Control Relay - 1 Channel, 12V

Additional Notes:
* Single Channel wireless remote control relay.
* 3 Jumper selectable Modes
       • 1: Jog: Relay energized (ON) as long as Button Pressed.
       • 2: Alternate Action: Press ON-Press OFF
       • 3: Interlocked: Press 1 Button to Energize;(ON) Press Other Button to turn OFF
* Key Fob Battery: CR2032 (Included)
* Module Voltage: 12VDC
* Idle Current: <10mA
* Frequency: 433MHz
* Temperature: -20º to +60ºC
* Receiving Sensitivity: >-105dB
* Relay: SPDT
* Contacts:
10 Amps @ 125VDC / 250VAC /30VDC
* Extra/Replacement Key Fob: SEE 38226 MI
* Module Dimensions (LxWxH): 1-3/8" x 1-3/16" x 5/8"
* Key Fob Remote Dimensions (LxWxD): 2-3/8" x 1-1/8" x 1/2"
