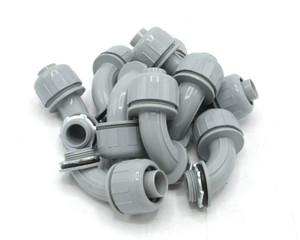

3/4" NPT Liquid Tight Conduit Fitting

SKU:
006951
|
UPC:
0799632702580
$2.75
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 or above and get 12% off
(No reviews yet)
Current Stock:
1620

3/4" NPT Liquid Tight Conduit Fitting

3/4 Inch Heyco-Flex Liquid Tight Conduit Fittings
For Flexible, Nonmetallic Liquid Tight Heyco-Flex I Conduit and Heyco-Flex II Tubing
90° Sweep, NPT Hubs

Smooth internal surfaces for easier wire installation around corner angles.
No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, then tightens the domed sealing nut. This completed assembly can then be secured in the panel by the locknut or into an NPT threaded hole.
Convex ferrule ensures liquid tight seal.
No threading of the conduit or tubing is required to install. This eliminates the possibility of cutting the conduit and creating leak paths.
Complete conduit/connector system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction.
Protection class IP 68, up to 70 psi (5 bar) water pressure.
Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL certification and testing.)
Use of a sealing washer may be required for wet locations.
If using a tapped hole, Teflon® tape is needed on the threads of the connecto

Heyco
8428
