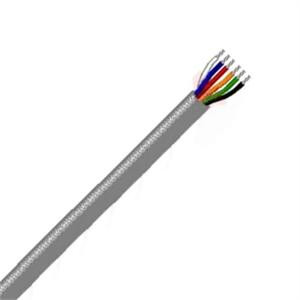

25 Conductor 18 AWG Non-Shielded Cable Type CM Belden Equivalent 9626 - 500 Foot

25 Conductor 18 AWG Non-Shielded Cable Type CM Belden Equivalent 9626 - 500 Foot

General Cable
SKU:
005515
$2,125.00
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 3 or above and get 5% off
(No reviews yet)
Current Stock:
10
Adding to cart… The item has been added
Description

Multi-Conductor Communication & Control Cable
25 Conductor 18 Gauge Cable Type CM

18 Gauge 25 Conductor Non-Shielded Type CM , CMG, CSA
Material: TC - Fully Annealed Tinned Copper
Stranding: 16 x 30 Gauge
Length: 500 Foot

Insulation:
Premium-grade, CoIor-coded PVC per UL 1007
Color Code: Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green, Orange/Green, Black/White/Red, White/Black/Red, Red/Black/White,
Green/Black/White
Nominal OD: 0.550"

Jacket
PVC Gray
Temperature Range: -20 Deg. C to 80 Deg. C

Applications:
Public Address Systems
Intercoms
Remote Control Circuits
Suitable For EIA RS-232 Applications
Suggested Voltage Rating: 300 Volts

Compliances:
NEC Article 800 Type CM (UL: 75 Deg. C)
UL Style 2464 (UL: 80 Deg. C, 300 Volt)
CSA CMG (CSA: 60 Deg. C)
RoHS Compliant Directive 2011/65/EC
Designed to Meet UL 70,000 BTU Vertical Tray Flame Test
Passes CSA CMG Flame Test

Manufacturer: General Cable Part # C2433
Belden 9626 Equivalent

Note: This wire is shipped directly from the manufacturer. It is not available for pick up at the store. Pricing may vary from the retail store price.

Please be sure of your purchase - At our discretion, cut or measured purchases may not be returnable or may be subject to up to a 25% restocking fee. Also, any shipping charges (including return shipping or Delivery Intercept fees) incurred are non-refundable.
