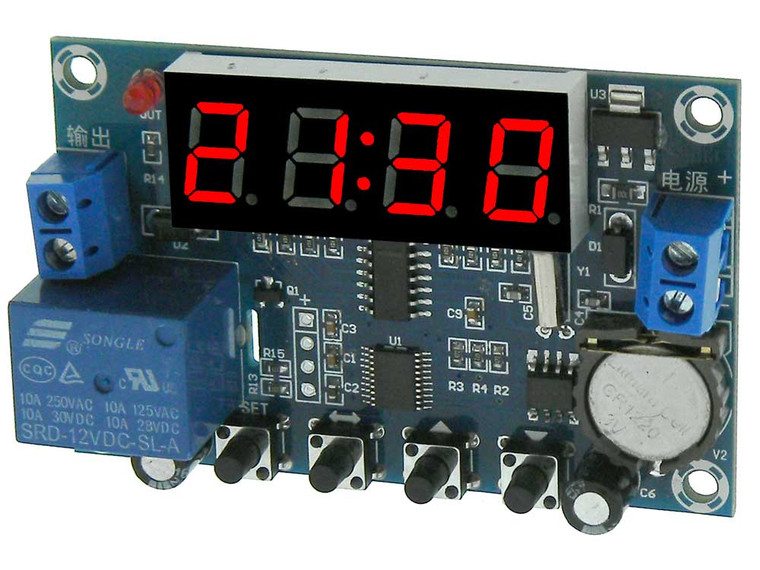

24-hour Clock Timer, 3 Event

24-hour Clock Timer, 3 Event

Additional Notes:
* Crystal controlled, Adjustable 24 hr. (No AM/PM) Clock/Timer that allows you to set up to 3 “ON” & “OFF” periods of a SPST-NO relay.
* Retains settings with power off (internal coin CR1220 battery Supplied)
* Note: Internal battery will not operate relay or display.
* Power: 12VDC external @ <100mA relay energized
* Accuracy: ~1sec/24hr
* Resolution: 1minute
* Contacts Rated: 10A @ 250VAC/30VDC
* LED Status Indicator
* Display: 4 digit + Colon, 15mm height Red LED
* Terminal Strip for Power and Relay contacts
* Dimensions (LxWxD): 2-3/4” x 1-13/16” x 7/8”
