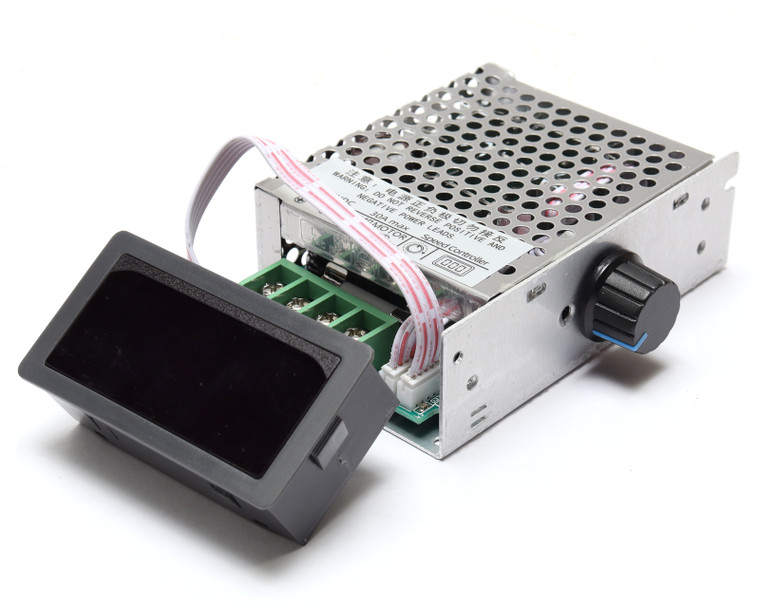

20A 12-80V DC Motor Speed Control & Display

20A 12-80V DC Motor Speed Control & Display

SKU:
027166
$21.95
(No reviews yet)
Current Stock:
45
Adding to cart… The item has been added
Description

20A 12-80V DC Motor Speed Control & Display

Additional Notes:
* Modular, enclosed, wide range control with "Relative Speed" Display.
* Uses PWM to vary the speed of DC motors.
* On-board adjustment pot.
* Terminal strip for power & Motor connections.
* DO NOT REVERSE POWER CONNECTIONS
* Input: 12- 80VDC
* Output: 20A max. 30A Surge
* Recommended: 12V/250W, 24V/350W, 48V/500W
* Range: 0%-100% of rated motor RPM
* Frequency: 21KHz.
* Display: 3 Digit 0.56" LED.
* Pigtail: 7in.
* Range: 0-100% of Motor Max Speed
* 25 = 25% 75= 75% of RPM
* Display Cutout: L: 2-7/8" W: 1-9/16"
* Display: L: 3-1/8" W: 1-11/16" D: 1-1/8"
* Module: L: 4-3/8” W: 3-3/4” O/A H: 1-3/8”
