2 Conductor 20 Gauge Shielded Cable

SKU:
013723
$0.18
(No reviews yet)
Current Stock:
6000

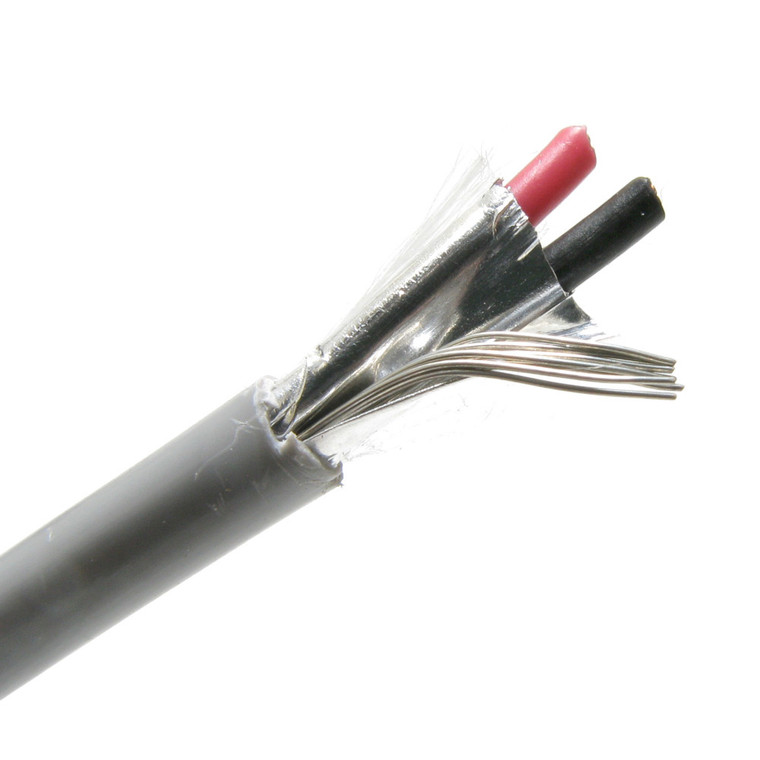

2 Conductor 20 Gauge Shielded Cable

Security & Commercial Audio Cable, Riser-CMR
Intercom/PA Systems, Sound/Audio Systems
2-20 AWG Stranded Bare Copper Conductors with Polypropylene Insulation
Beldfoil Shield and PVC Jacket with Ripcord

Conductors:
Material: Bare Copper
Stranding: 7 x 28 Gauge
Color Code: Black & Red

Shield:
Overall Foil Shield, Beldfoil
100 Percent, Foil Facing Out
24 Gauge (7x32) Drain Wire TC

Voltage Rating:
Maximum Operating: 300 Volt

Jacket:
Grey PVC Jacket with Ripcord
Nom. OD: 0.138"

Temperature:
75 Degree C
Operating: -20 Degree C to +75 Degree C

Compliances:
UL1666
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMG
RoHS

Belden
5300FE
