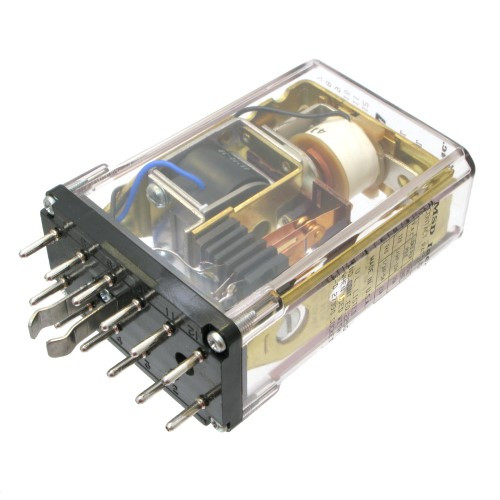

120 Volt AC Latching Relay, DPDT 10 Amp Dual-Coil

SKU:
007102
$95.00
(No reviews yet)
Current Stock:
4
120 Volt AC Latching Relay, DPDT 10 Amp 2-Coil

The 255 Series is a two coil latching version of the general purpose type 219 relay. When the operate coil is momentarily energized, contacts transfer and remain so even after coil power is removed. The second coil when momentarly energized, provides electrical reset of the contacts. All contacts operate from a common armature to prevent contatct overlapping. Coils are rated for continous duty. Both coils can be energized at the same time with no damage. The operate coil is dominant

Contact Configuration: DPDT
Contact Material: Silver Alloy Gold Diffused
Contact Raiting Resistive Load: 120 Volt AC at 10 Amp / 240 Volt AC at 5 Amp / 28 Volt DC at 10 Amp
Coil Voltage: Both Operate & Release 120 Volt AC
Timing: Operate 25mS, Release 20mS

MSD
B255xbxp-120v
