12 Volt DC Axial Compact Fan 40mm

Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 24 and get 10% off
  • Buy 25 or above and get 12% off
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

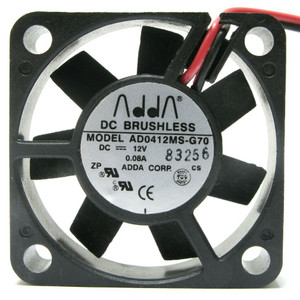

12 Volt DC Axial Compact Fan 40mm

Dimensions 40mm x 40mm x 20mm
Material of impeller Fiberglass-reinforced PA plastic
Housing material Fiberglass-reinforced PBT plastic
Direction of air flow: Air exhaust over struts
Direction of rotation: CCW, looking at rotor
Nominal voltage 12 Volt DC
Nominal voltage range 10 - 12 Volt DC
Leads are 5 Inch long with a 2 pin connector
6000 RPM

Noise: 18dB
Flow Rate Imperial: 5.9 cu ft/min
Sleeve bearings

Mounting from either face using four 4.3mm holes
Motor protection Protected against reverse polarity and locking.

Fan only operates when the polariy is correct
Approval VDE, CSA, UL

TYP 412 LP
