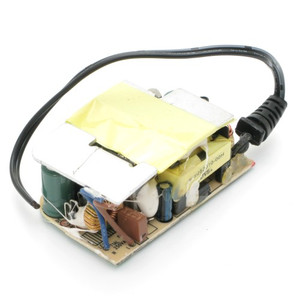

12 Volt DC 3.3 Amp Open Frame Power Supply

12 Volt DC 3.3 Amp Open Frame Power Supply

Lambda
SKU:
010773
$19.95
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 10% off
(No reviews yet)
Width:
4.00 (in)
Height:
2.00 (in)
Depth:
6.00 (in)
Current Stock:
41
Adding to cart… The item has been added
Description
12 Volt DC 3.3 Amp Open Frame Power Supply

Specifications:
Open Frame Switching / Regulated Power Supply
Nominal Output Voltage: 12 Volt DC, Adjustable -5% ~ +10% with Onboard Potentiometer
Maximum Output Current with Convection Cooled 3.3 Amp
Maximum Output Current with Forced Air Cooling (30 CFM) 4.5 Amp (No Fan Included)
Maximum Output Power: 40 Watt
Over Voltage and Over Current Protection
Input Voltage: 100~240 Volt AC (47~63 Hz)
Input: 0.25" Quick Connect Female with 5 Inch of Wire to 2-Pin Molex Connector (Board has 0.250" Faston Safety Earth Ground Connector)
Output: Onboard 6-Pin Molex Connector with 8 Inch of Wire to 4-Pin Molex Connector, Plus 2 Wires with 0.110" Quick Connect Female
Power Supply Dimensions: 5" (L) x 3" (W) x 1.125" (H)
PC Board has 4 Mounting Holes 0.15" Diameter
Center to Center Mounting Hole Spacing: 4.56" (L) x 2.55" (W)

Lambda
SCS40-12
