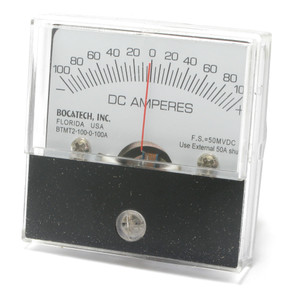

100-0-100 Amp DC Analog Panel Meter, 2.5 Inch
Bocatech, Inc.
$8.95
(No reviews yet)
Write a Review
Bocatech, Inc.
100-0-100 Amp DC Analog Panel Meter, 2.5 Inch
100-0-100 Amp DC Analog Panel Meter, 2.5 Inch
Product Details:
Linear Scale 100 - 0 - 100 Amp DC with 5 Amp Divisions
Shunt Required (NOT Included)
Movement: 50 mV
Meters Reads Both Charge - Discharge Current
Meter Input: Screw Terminals
Panel Cutout Dimensions: 2.14"
Dimensions: ~2.99" (W) x 2.27" (H) x Overall Depth: 2.2"
Mounting Studs are 1.88" Center to Center
NOTE: Meter Faceplate has a Typo: Use 50 Amp External Shunt.
Meter Needs 100 Amp External Shunt
Bocatech, Inc
BTMT3-100-100A
