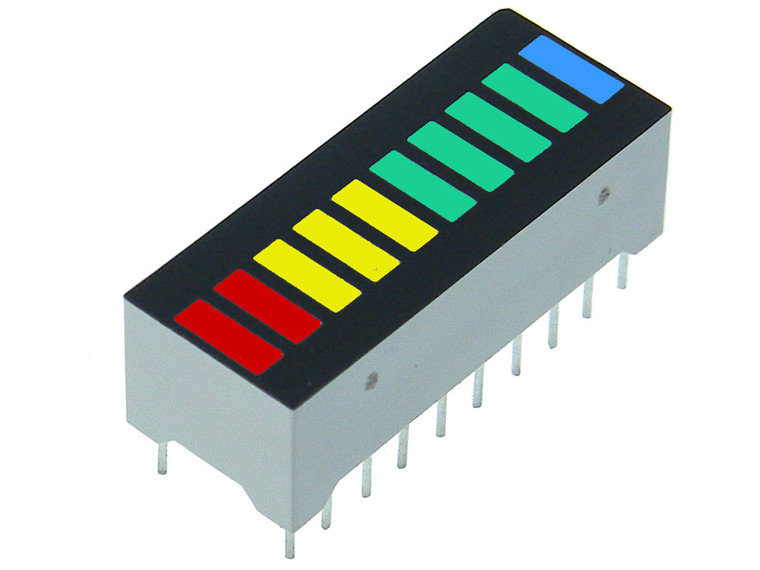

10 Segment - 4-color LED Bar Display
Additional Notes:
* Bargraph style LED Display contains 10 individual LEDs; one Blue, four Green, three Yellow and two Red
* Suitable for battery indicator, power level etc.
* NOTE: LEDs Only NO Driver Electronics
* Beveled Case Corner = Pin 1 (Blue LED Cathode)
* Pitch: 2.54mm
* Pins: 20
* Forward Current: 15mA/LED max
* Forward Voltage:
• Red: 2.5V; Yellow: 2.0V; Green: 2.8V; Blue: 3.0V
* Reverse Voltage: 5V (Max)
* Overall Dimensions (LxWxH): 26mm x 10.5mm x 8mm
