In stock
Only 5 left
SKU
005519

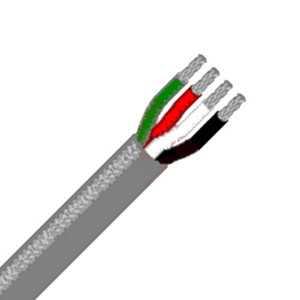

4 Conductor 18 Gauge Non-Shielded Cable Type CM Belden Equivalent 8489 - 1000 Foot

$325.00
Multi-Conductor -Communication & Control Cable Non-Shielded
Belden Equivalent Part # 8489
Length 1000 Foot Length
  • Buy 3 for $308.75 each and save 5%

18 Gauge 4 Conductor Non-Shielded Type CM , CMG, CSA
Material: TC - Fully Annealed Tinned Copper
Stranding: 16 x 30 Gauge

Conductors:
18 Gauge 4 Conductor Non-Shielded Type CM
Material: TC - Fully Annealed Tinned Copper
Stranding: 16 x 30 Gauge
Color Code: Black, White, Red, Green
Length: 1000 Foot

Insulation:
Premium-grade, CoIor-coded PVC per UL 1007
Color Code: Black, White, Red, Green
Nominal OD: 0.258"

Jacket:
PVC Gray
Temperature Range: -20 Deg. C to 80 Deg. C

Applications:
Public Address Systems
Intercoms
Remote Control Circuits
Suitable For EIA RS-232 Applications
Suggested Voltage Rating: 300 Volts

Compliances:
NEC Article 800 Type CM (UL: 75 Deg. C)
UL Style 2464 (UL: 80 Deg. C, 300 Volt)
CSA CMG (CSA: 60 Deg. C)
RoHS Compliant Directive 2002/95/EC
Designed to Meet UL 70,000 BTU Vertical Tray Flame Test
Passes CSA CMG Flame Test

Manufacturer: General Cable Part # C2404
Belden 8489 Equivalent

Note: This wire is shipped directly from the manufacturer. It is not available for pick up at the store. Pricing may vary from the retail store price.

Please be sure of your purchase - At our discretion, cut or measured purchases may not be returnable or may be subject to up to a 25% restocking fee. Also, any shipping charges (Including return shipping or Delivery Intercept fees) incurred are non-refundable.

More Information
Part Number C2404-1M
Description

18 Gauge 4 Conductor Non-Shielded Type CM , CMG, CSA
Material: TC - Fully Annealed Tinned Copper
Stranding: 16 x 30 Gauge

Conductors:
18 Gauge 4 Conductor Non-Shielded Type CM
Material: TC - Fully Annealed Tinned Copper
Stranding: 16 x 30 Gauge
Color Code: Black, White, Red, Green
Length: 1000 Foot

Insulation:
Premium-grade, CoIor-coded PVC per UL 1007
Color Code: Black, White, Red, Green
Nominal OD: 0.258"

Jacket:
PVC Gray
Temperature Range: -20 Deg. C to 80 Deg. C

Applications:
Public Address Systems
Intercoms
Remote Control Circuits
Suitable For EIA RS-232 Applications
Suggested Voltage Rating: 300 Volts

Compliances:
NEC Article 800 Type CM (UL: 75 Deg. C)
UL Style 2464 (UL: 80 Deg. C, 300 Volt)
CSA CMG (CSA: 60 Deg. C)
RoHS Compliant Directive 2002/95/EC
Designed to Meet UL 70,000 BTU Vertical Tray Flame Test
Passes CSA CMG Flame Test

Manufacturer: General Cable Part # C2404
Belden 8489 Equivalent

Note: This wire is shipped directly from the manufacturer. It is not available for pick up at the store. Pricing may vary from the retail store price.

Please be sure of your purchase - At our discretion, cut or measured purchases may not be returnable or may be subject to up to a 25% restocking fee. Also, any shipping charges (Including return shipping or Delivery Intercept fees) incurred are non-refundable.
