In stock
Only 5 left
SKU
005516

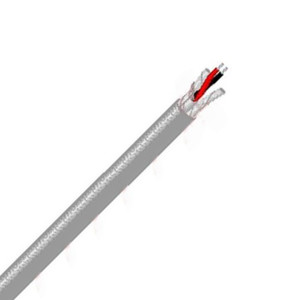

3-Pair 18 Gauge Individually Shielded Pair Cable - Type CM Belden Equivalent 9773

$592.59
Multi-Paired, Individually Shielded Cable
6 Conductor (3-Twisted Pair) 18 Gauge
Belden Equivalent Part # 9773
Available in 1000 Foot and 500 Foot Lengths
  • Buy 3 for $562.96 each and save 5%

Multi-Paired, Individually Shielded Cable
3-Pair (6 Conductor) 18Gauge Individually Shielded Pair Cable - Type CM

Conductors
18 Gauge Fully Annealed Tinned Copper
Stranding: 16 x 30 Gauge
Individually Shielded Twisted Pairs

Insulation:
Premium-grade, CoIor-coded Polypropylene
Color Code: (Black & Red); (Black & White); (Black & Green)

Shield
Individually Shielded Pairs
100% Aluminum/Polyester, 25% Overlap, Foil Facing Out
20 Gauge Tinned Drain Wire

Jacket
Grey PVC Jacket
Nominal OD: 0.395"
Temperature Range: -20 Deg. C to +80 Deg. C

Applications:
Where Total Isolation of Signal is Required
Computers
Control Circuits
Industrial Equipment
Suggested Voltage Rating: 30 Volts

Compliances:
CSA CMH (CSA: 60 °C)
UL Style 2919 (UL: 80 °C, 30V)
NEC Article 800 Type CM (UL: 75°C)
RoHS Compliant Directive 2002/95/EC
Designed to Meet CSA 70,000 BTU Vertical Tray Flame Test
Passes CSA CMH Flame Test

General Cable # C6047
Belden Equivalent= 9773

Note: This wire is shipped directly from the manufacturer. It is not available for pick up at the store. Pricing may vary from the retail store price.

Please be sure of your purchase - At our discretion, cut or measured purchases may not be returnable or may be subject to up to a 25% restocking fee. Also, any shipping charges (including return shipping or Delivery Intercept fees) incurred are non-refundable.
