SKU
005512

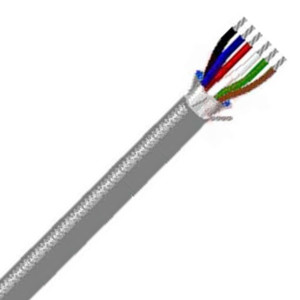

6 Conductor 24 Gauge with Overall Shield Cable, Type CMR Belden Equivalent 9536

$222.22
Multi-Conductor with Overall Foil Shield Cable
Belden Equivalent Part # 9536
Available Lengths: 1000 Foot and 500 Foot
  • Buy 3 for $211.11 each and save 5%

Multi-Conductor, Foil Shielded Cable Belden Equivalent 9536
6 Conductor 24 Gauge with Overall Foil Shield

Conductors
24 Gauge 6 Conductor Shielded Type CMR, CMG
Material: TC - Fully Annealed Tinned Copper
Stranding: 7 x 32 Gauge

Shield
Overall Aluminum Foil Shield
24 Gauge Drain Wire

Insulation:
Premium-grade, CoIor-coded S-R PVC per UL AWM Style 1061
Color Code: Black, White, Red, Light Green, Light Brown, Light Blue
Nominal OD: 0.201"

Jacket
Grey PVC Jacket
Temperature Range: -20 Deg. C to +80 Deg. C

Applications:
Computer Interconnections
Data Transmission
Control Circuits
Industrial Equpment Control
Suitable For EIA RS-232 Applications
Suggested Voltage Rating: 300 Volts

Compliances:
NEC Article 800 Type CMR (UL: 75 Deg. C)
UL Style 2464 (UL: 80 Deg. C, 300 V)
RoHS Compliant Directive 2011/65/EC

Manufacturer: General Cable Part # C0743
Belden 9536 Equivalent

Note: This wire is shipped directly from the manufacturer. It is not available for pick up at the store. Pricing may vary from the retail store price.

Please be sure of your purchase - At our discretion, cut or measured purchases may not be returnable or may be subject to up to a 25% restocking fee. Also, any shipping charges (including return shipping or Delivery Intercept fees) incurred are non-refundable.
