In stock
Only 5 left
SKU
005405

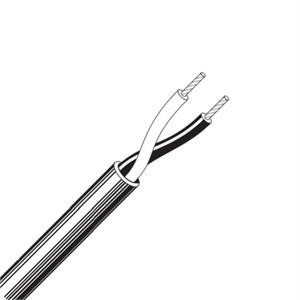

2 Conductor 16 Gauge Cable Type CM Belden Equivalent 8471-1000 ft

$271.60
Multi-Conductor, Non-Shielded - Audio, Control and Instrumentation Cable
Belden Equivalent Part # 8471
Length: 1000 Foot
  • Buy 3 for $258.02 each and save 5%

Multi-Conductor, Non-Shielded - Audio, Control and Instrumentation Cable
2 Conductor 16 Gauge Twisted Pair Cable Type CM
Length: 1000 Foot

Conductors
16 Gauge 2 Conductor Non-Shielded Type CM
Material: TC - Fully Annealed Tinned Copper
Stranding: 19 x 29 Gauge

Insulation:
Premium-grade, coIor-coded PVC per UL 1007
Color Code: Black and White

Jacket
Grey PVC jacket
Nominal OD: 0.274"
Temperature Range: -20 Deg. C to 80 Deg. C

Applications:
Public Address Systems
Intercoms
Remote Control Circuits
Suitable For EIA RS-232 Applications
Suggested Voltage Rating: 300 Volts

Compliances:
NEC Article 800 Type CMR (UL: 75 Deg. C)
UL Style 2464 (UL: 80 Deg. C, 300 Volt)
CSA CMG (CSA: 60 Deg. C)
RoHS Compliant Directive 2002/95/EC
Designed to Meet UL 70,000 BTU Vertical Tray Flame Test
Passes CSA CMG Flame Test

Manufacturer: General Cable Part # C2405
Belden 8471 Equivalent

Note: This wire is shipped directly from the manufacturer. It is not available for pick up at the store. Pricing may vary from the retail store price.

Please be sure of your purchase - At our discretion, cut or measured purchases may not be returnable or may be subject to up to a 25% restocking fee. Also, any shipping charges (including return shipping or Delivery Intercept fees) incurred are non-refundable.

More Information
Part Number C2405-1M
Description

Multi-Conductor, Non-Shielded - Audio, Control and Instrumentation Cable
2 Conductor 16 Gauge Twisted Pair Cable Type CM
Length: 1000 Foot

Conductors
16 Gauge 2 Conductor Non-Shielded Type CM
Material: TC - Fully Annealed Tinned Copper
Stranding: 19 x 29 Gauge

Insulation:
Premium-grade, coIor-coded PVC per UL 1007
Color Code: Black and White

Jacket
Grey PVC jacket
Nominal OD: 0.274"
Temperature Range: -20 Deg. C to 80 Deg. C

Applications:
Public Address Systems
Intercoms
Remote Control Circuits
Suitable For EIA RS-232 Applications
Suggested Voltage Rating: 300 Volts

Compliances:
NEC Article 800 Type CMR (UL: 75 Deg. C)
UL Style 2464 (UL: 80 Deg. C, 300 Volt)
CSA CMG (CSA: 60 Deg. C)
RoHS Compliant Directive 2002/95/EC
Designed to Meet UL 70,000 BTU Vertical Tray Flame Test
Passes CSA CMG Flame Test

Manufacturer: General Cable Part # C2405
Belden 8471 Equivalent

Note: This wire is shipped directly from the manufacturer. It is not available for pick up at the store. Pricing may vary from the retail store price.

Please be sure of your purchase - At our discretion, cut or measured purchases may not be returnable or may be subject to up to a 25% restocking fee. Also, any shipping charges (including return shipping or Delivery Intercept fees) incurred are non-refundable.
